Allen-Bradley

Type of accessory/spare part: Connecting cable

Rated voltage: 250 V | Rated current In: 16 A | Type of electrical connection 1: Plug-in connection

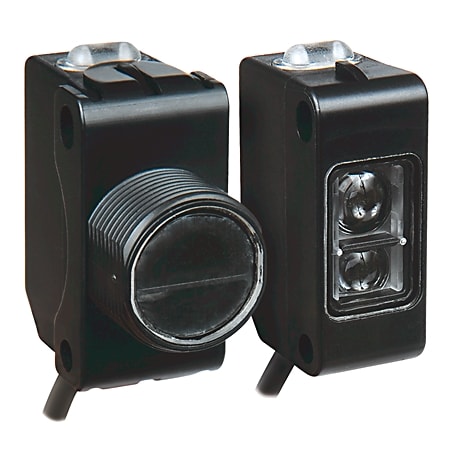

Rated control supply voltage Us at DC: 10...30 V | Max. output current: 100 mA | Rated switching distance: 10000 mm

Contact type: Socket (Female) | Thread size metric (M..): 14 | Diameter connector: 12 mm

Mains voltage: 380...480 V | Nominal output current I2N: 6 A | Max. output frequency: 500 Hz

Colour control element: Silver | Type of control element: Turn button (knob) | Number of switch positions: 3

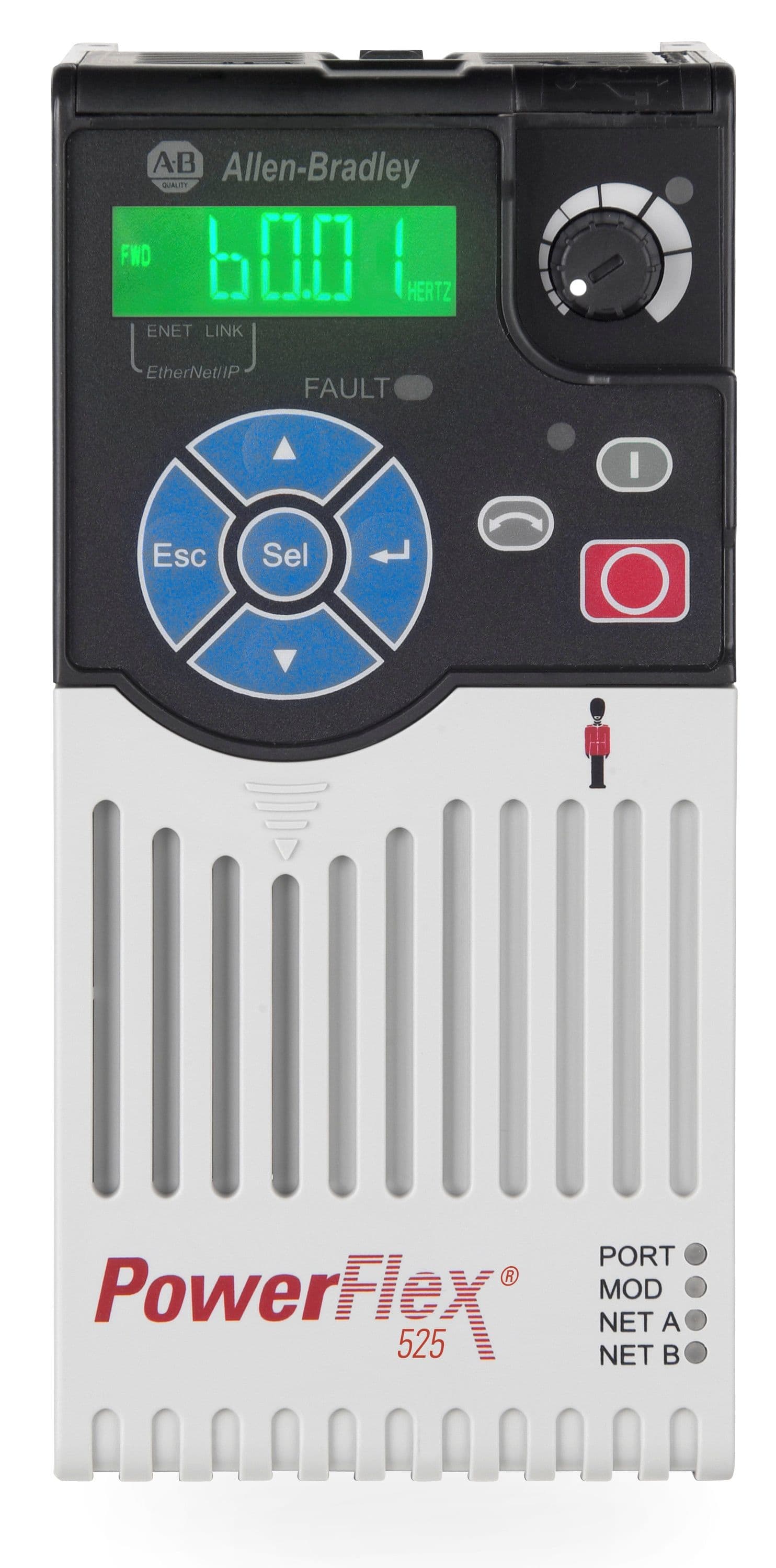

Mains voltage: 100...120 V | Nominal output current I2N: 2.5 A | Max. output frequency: 500 Hz

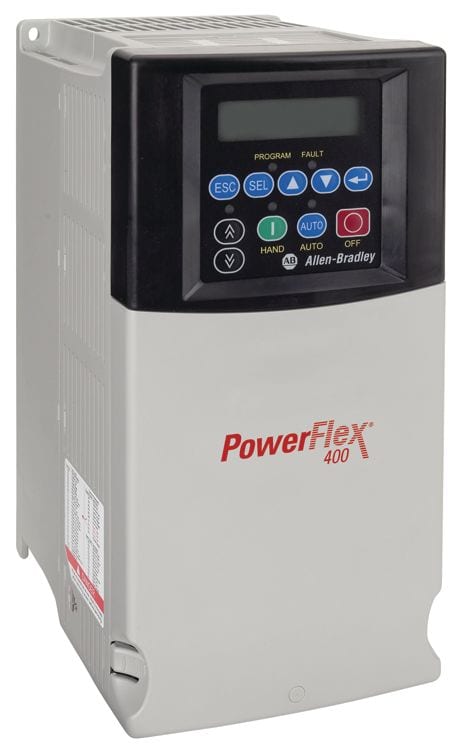

Mains voltage: 380...480 V | Nominal output current I2N: 45 A | Max. output frequency: 320 Hz

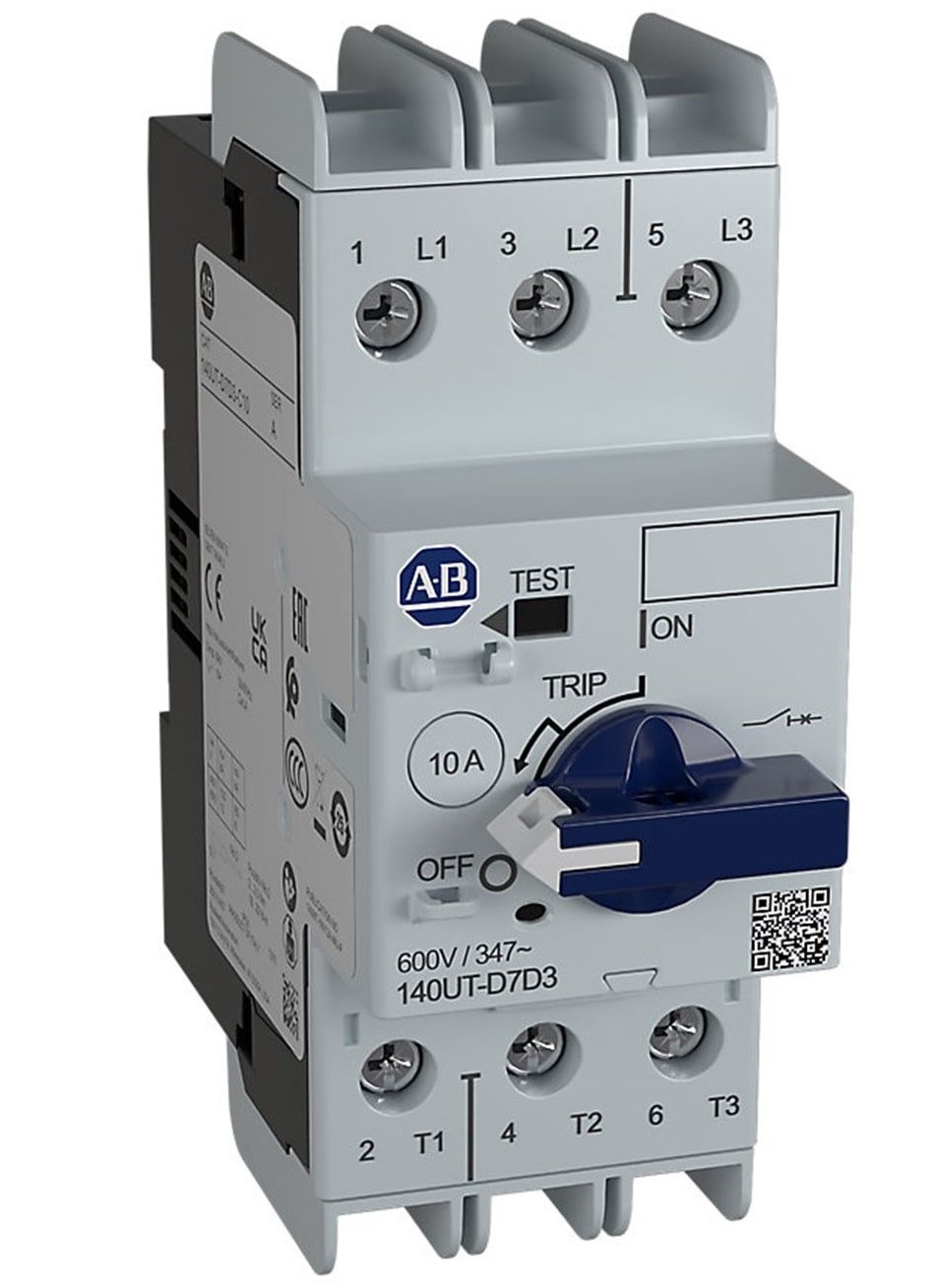

Mounting method: Direct attachment/single positioning | Reset function push-button: yes | Adjustable current range: 5.4...27 A

Rated permanent current Iu: 32 A | Device construction: Complete device in housing | Number of poles: 3

Rated permanent current Iu: 100 A | Device construction: Complete device in housing | Number of poles: 3

Number of protected poles: 1 | Release characteristic: C | Number of poles (total): 2

Number of HW-interfaces industrial Ethernet: 2 | Model: Compact | Number of relay outputs: 0

Suitable for number of built-in signal lights: 1 | Colour lens: Colourless | Construction type lens: Round

Voltage type for actuating: AC | Rated operation power at AC-3, 400 V: 15 kW | Rated control supply voltage Us at AC 50HZ: 93.5...121 V

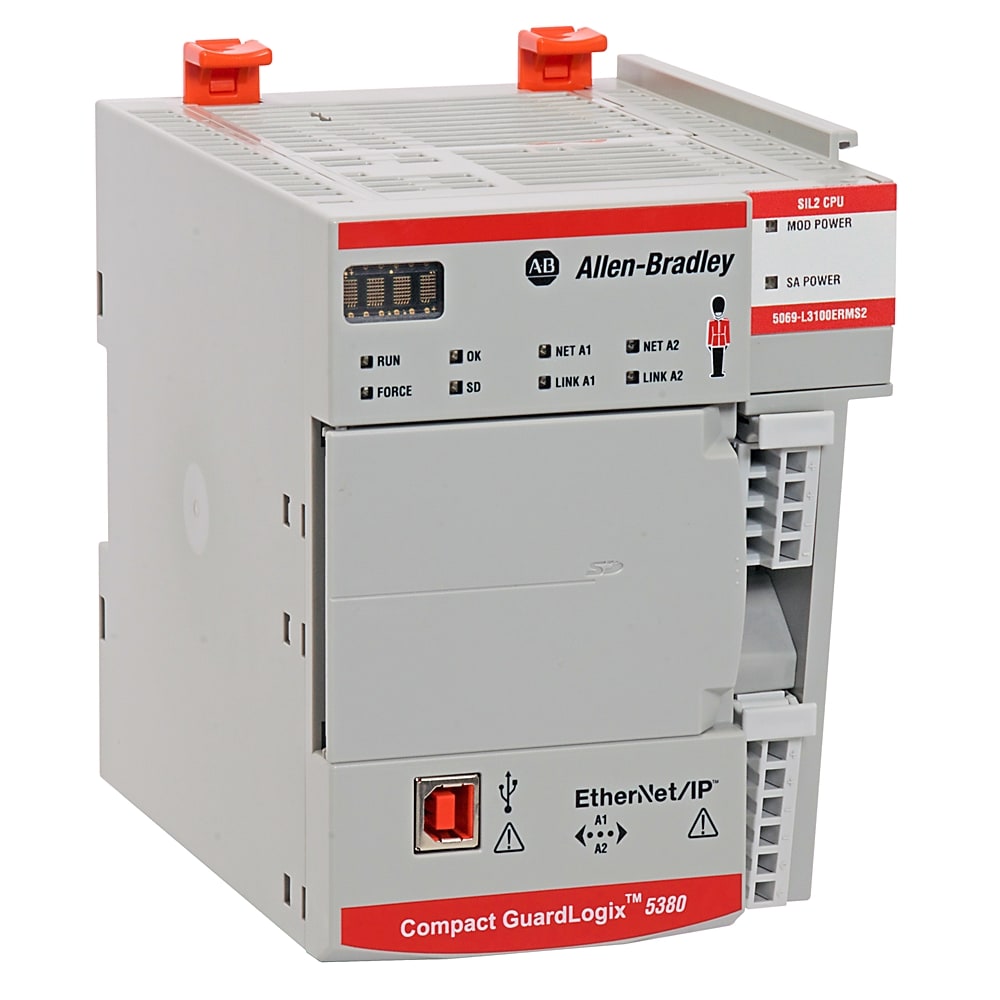

Supporting protocol for EtherNet/IP: yes | Number of HW-interfaces USB: 1 | SIL according to IEC 61508: 2

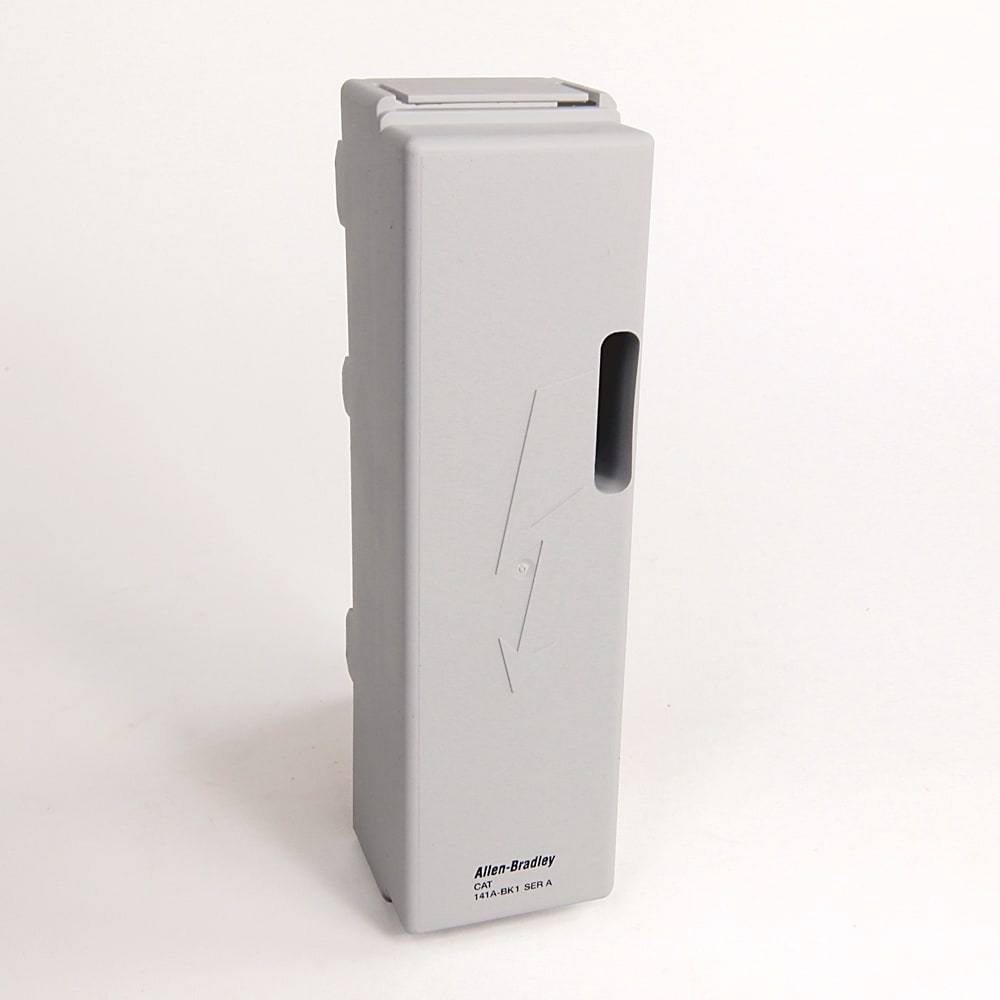

Accessory: yes | Type of accessory/spare part: Cover

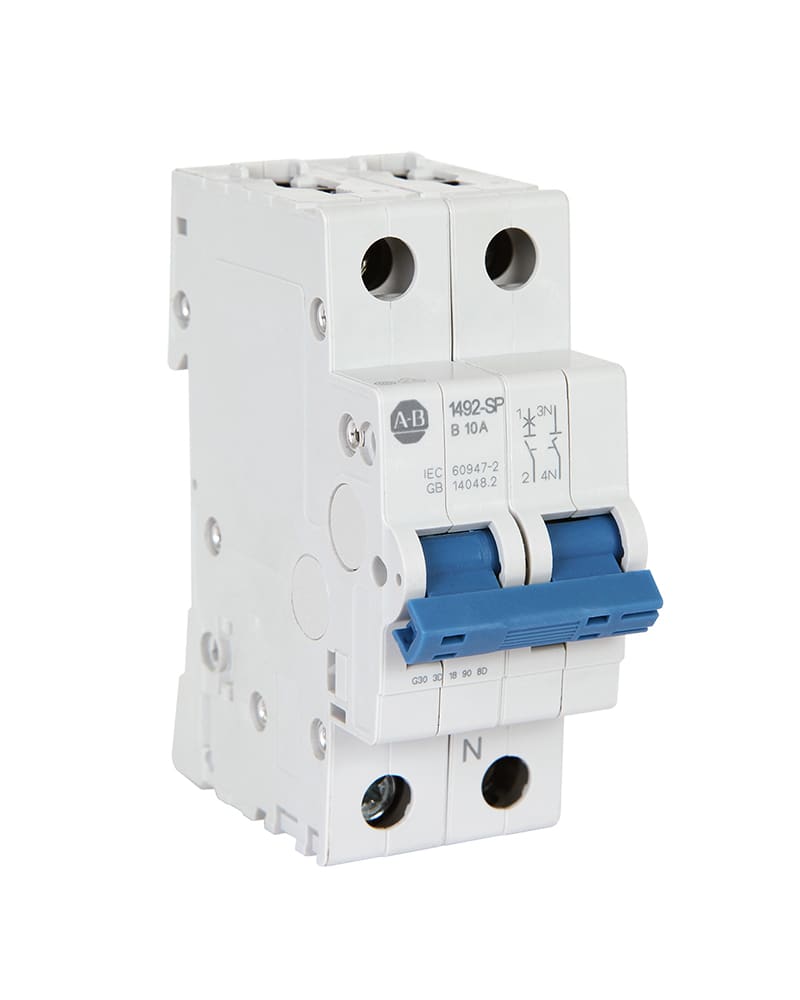

Number of protected poles: 2 | Release characteristic: B | Number of poles (total): 2

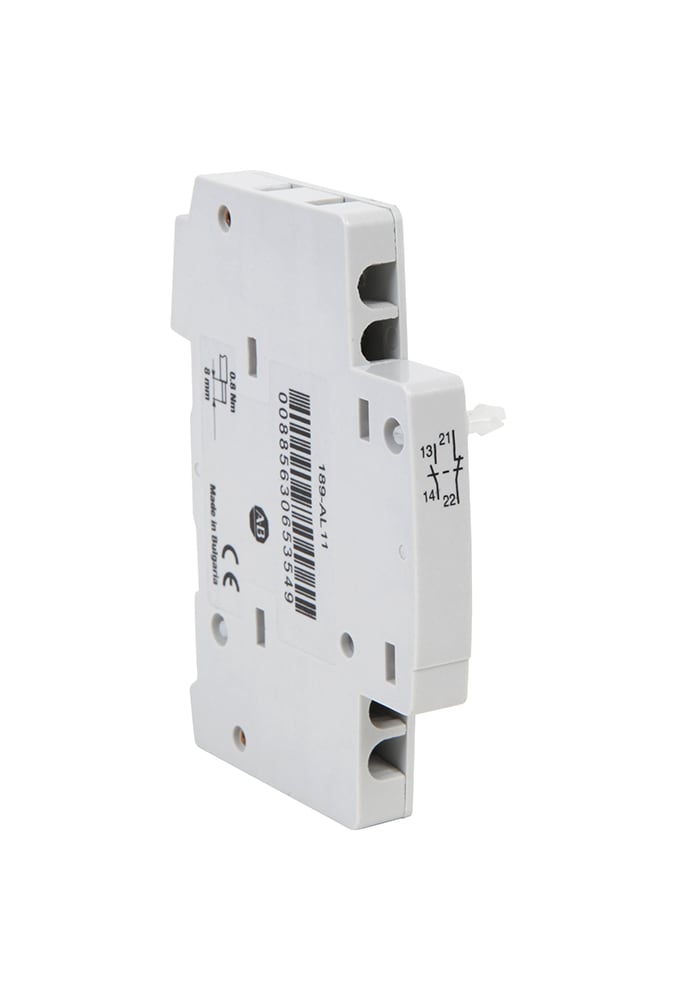

Number of contacts as normally open contact: 0 | Number of contacts as change-over contact: 0 | Number of contacts as normally closed contact: 2

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: 100 kA | Rated permanent current Iu: 0.5 A | Connection type main current circuit: Screw connection

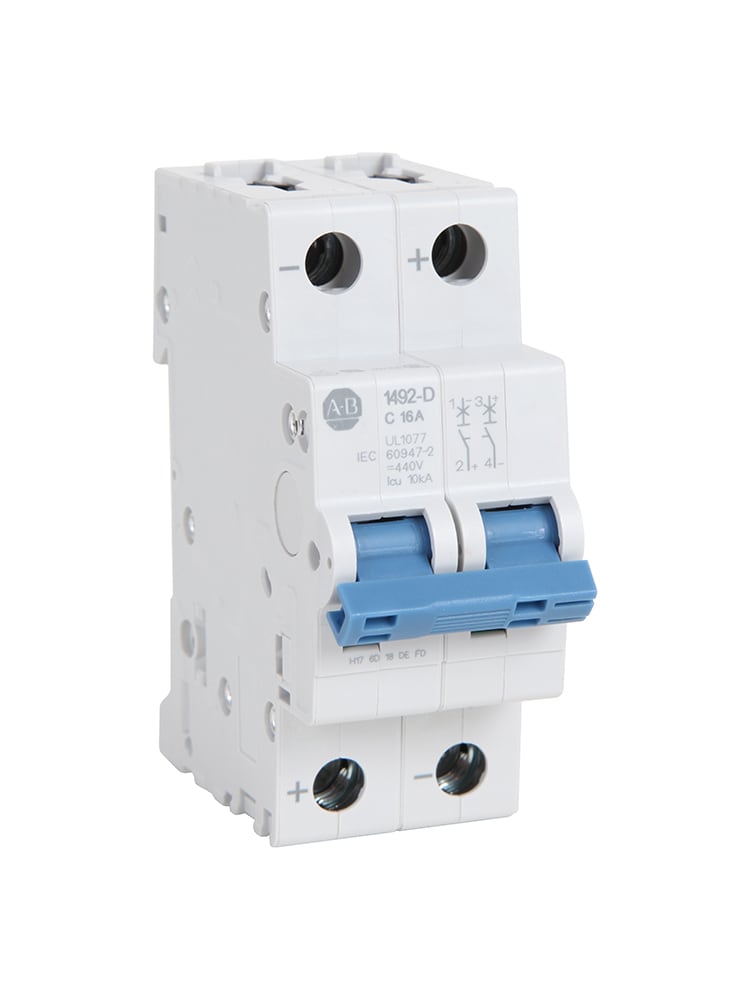

Rated current: 1 A | Release characteristic: C | Number of poles (total): 2

Power output: 75 W | Input voltage at DC: 24...24 V | Type of input voltage: DC

Number of digital outputs: 0 | Permitted voltage at input: 230...230 V | Number of digital inputs: 8
