Allen-Bradley

Rated control supply voltage Us at DC: 110...110 V | Mounting method: DIN-rail/screw | Voltage type for actuating: DC

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: 65 kA | Rated permanent current Iu: 50 A | Setting range overload protector: 50...50 A

Type of accessory/spare part: Other

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: 65 kA | Rated permanent current Iu: 12 A | Connection type main current circuit: Screw connection

Type of accessory/spare part: Control cable connection

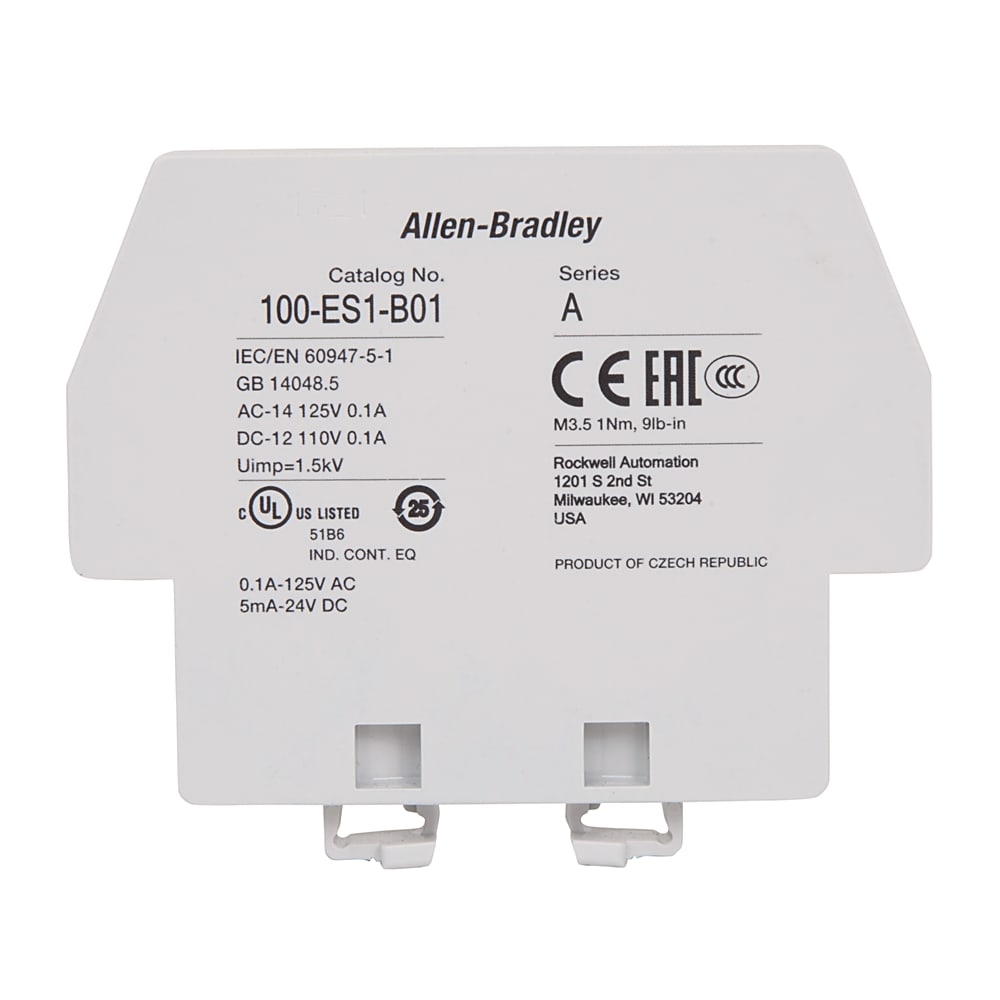

Number of contacts as normally open contact: 1 | Number of contacts as change-over contact: 0 | Number of contacts as normally closed contact: 1

Number of protected poles: 3 | Release characteristic: D | Number of poles (total): 3

Number of contacts as normally open contact: 0 | Number of contacts as change-over contact: 0 | Number of contacts as normally closed contact: 1

Rated voltage at DC: 24...24 V | Voltage type: AC/DC | Rated voltage at AC 50 Hz: 24...24 V

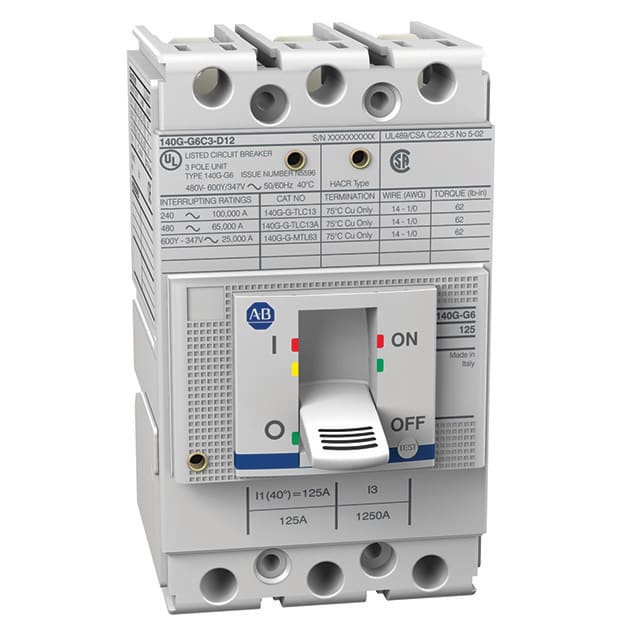

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: 36 kA | Rated permanent current Iu: 125 A | Setting range overload protector: 125...125 A

Type of accessory/spare part: Connecting cable

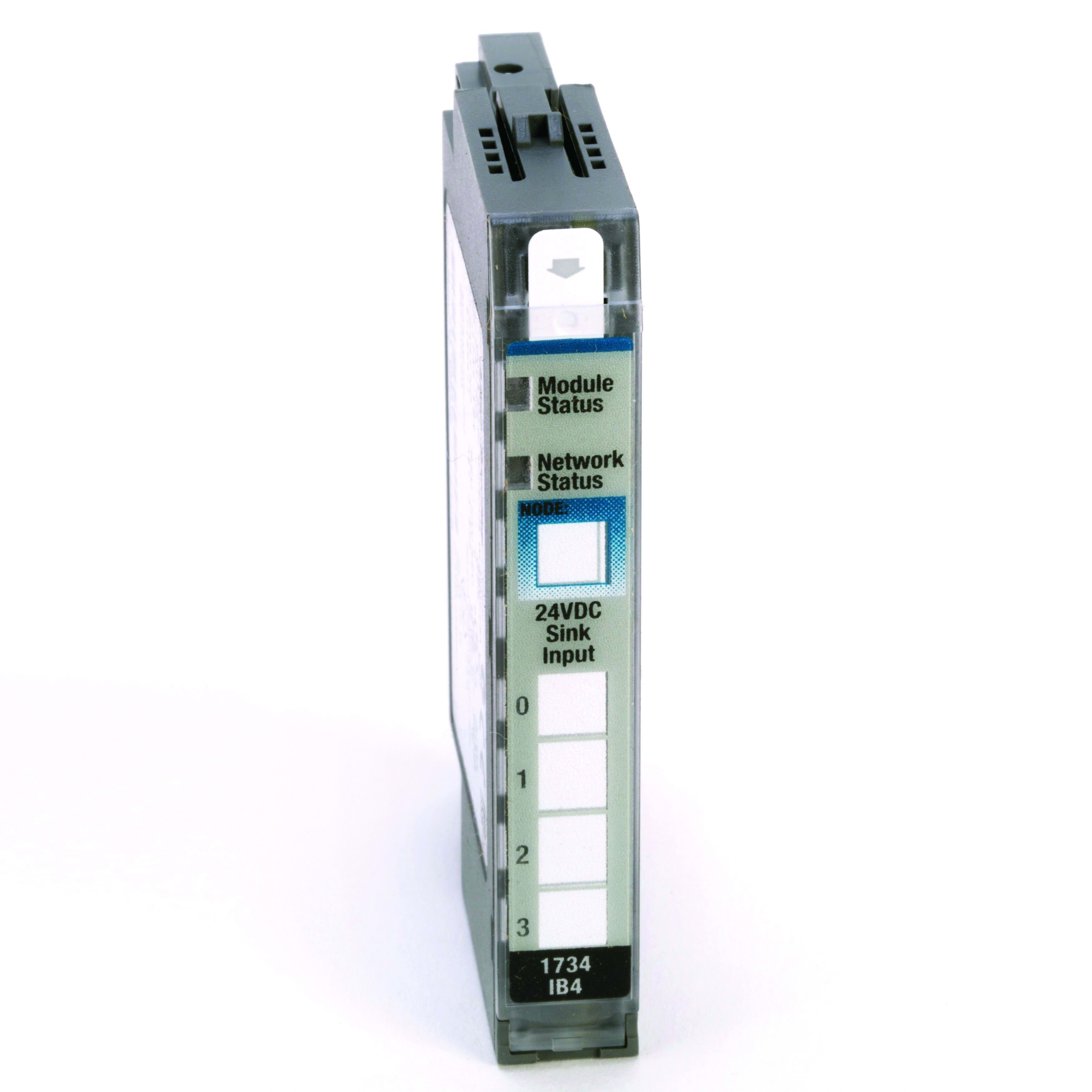

Number of digital outputs: 0 | Permitted voltage at input: 24...24 V | Number of digital inputs: 2

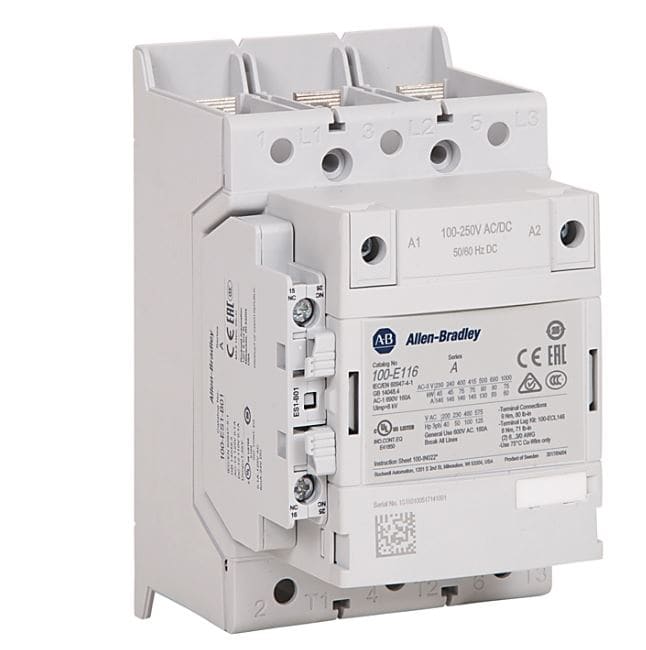

Rated control supply voltage Us at DC: 100...250 V | Voltage type for actuating: AC/DC | Rated control supply voltage Us at AC 50HZ: 100...250 V

Voltage type of supply voltage: AC | 1st secondary output voltage: 24...28 V | Max. output current 1: 10 A

Type of accessory/spare part: Mounting hardware

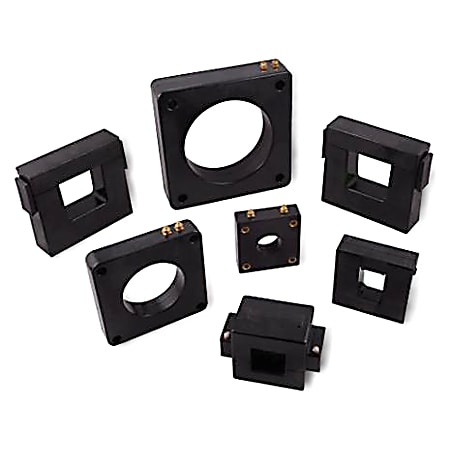

Primary rated current: 150 A | Model: Single-phase current converter | Secondary rated current: 5 A

Type of accessory/spare part: Connecting cable

Rated short-circuit breaking capacity lcu at 400 V, 50 Hz: 36 kA | Rated permanent current Iu: 80 A | Setting range overload protector: 80...80 A

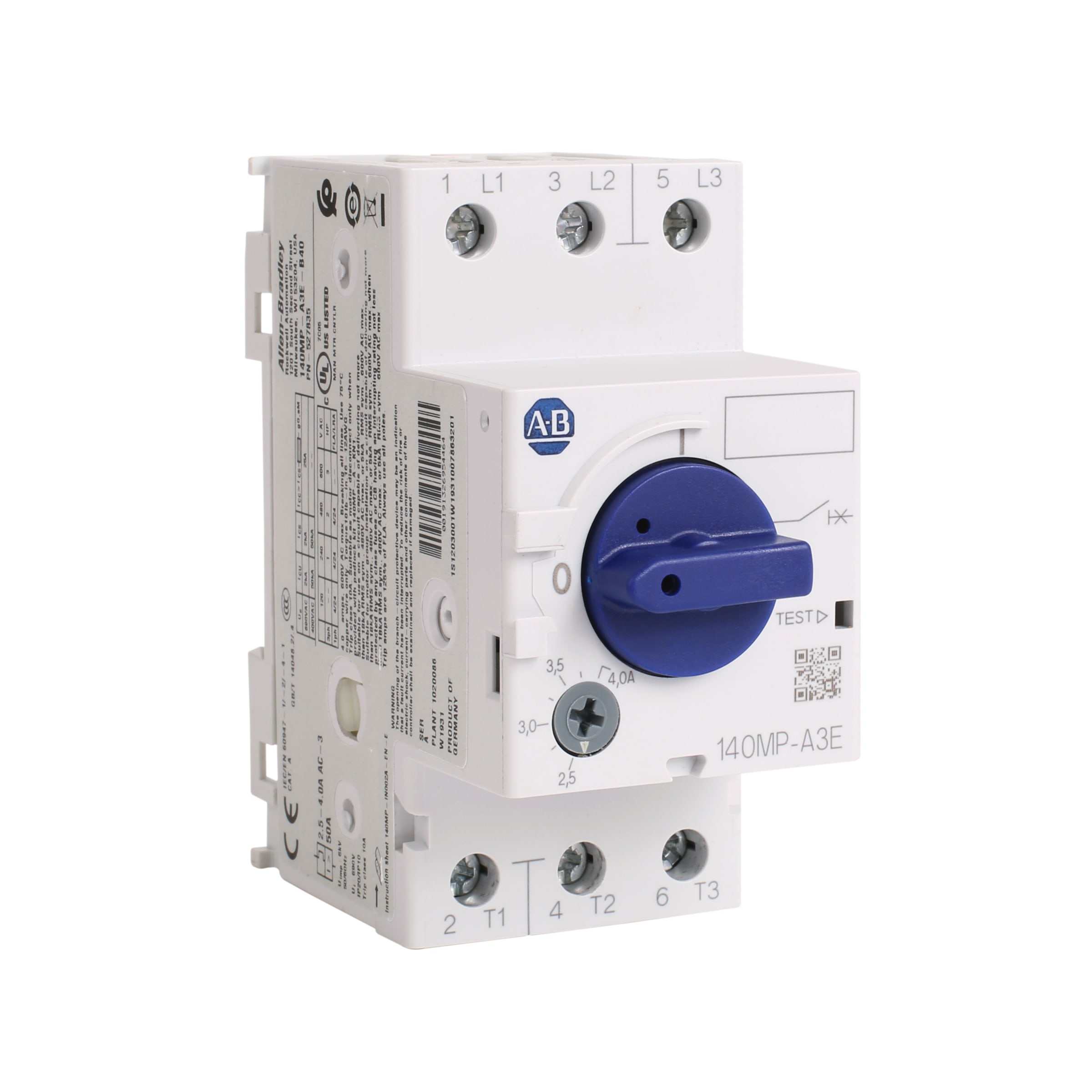

Adjustment range undelayed short-circuit release: 2.5...4 A | Setting range overload protector: 2.5...4 A | Number of poles: 3

Category: 5E | Type of connector connection 1: RJ45 8(8) | Length: 25 m

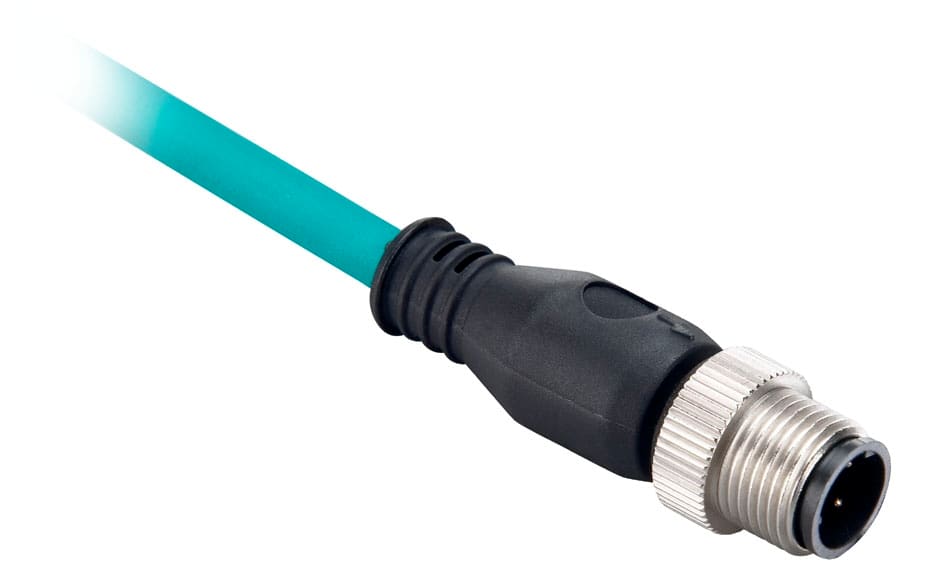

Category: 5E | Type of connector connection 1: M12 | Length: 15 m

Degree of protection (IP), front side: IP66 | Type of button: High | Colour button: Red

Contact type: Pin | Thread size metric (M..): 12 | Diameter connector: 20 mm
