Guardmaster®

Laser protection class: Class 1 | Number of safety fields: 1 | Number of protected semiconductor outputs: 2

Forced opening: yes | Number of contacts as normally open contact: 1 | Number of contacts as normally closed contact: 2

Rated control supply voltage Us at DC: 24...24 V | Wavelength of the sensor: 855 nm | IP-rating: IP65

Type of guard locking: Quiescent current principle | Number of contacts as normally open contact: 1 | Number of contacts as normally closed contact: 2

Suitable for safety functions: yes | Material housing: Metal | With status indication: yes

Forced opening: yes | Number of contacts as normally open contact: 1 | Number of contacts as normally closed contact: 2

Rated control supply voltage Us at DC: 24...24 V | Transmission range of the safety field: 4 m | Wavelength of the sensor: 855 nm

Type of guard locking: Quiescent current principle | Number of contacts as normally open contact: 2 | Number of contacts as normally closed contact: 2

Type of plug-in contact, field sided: Female (bus) | Type of electrical connection, field-sided: M12 | Number of poles: 8

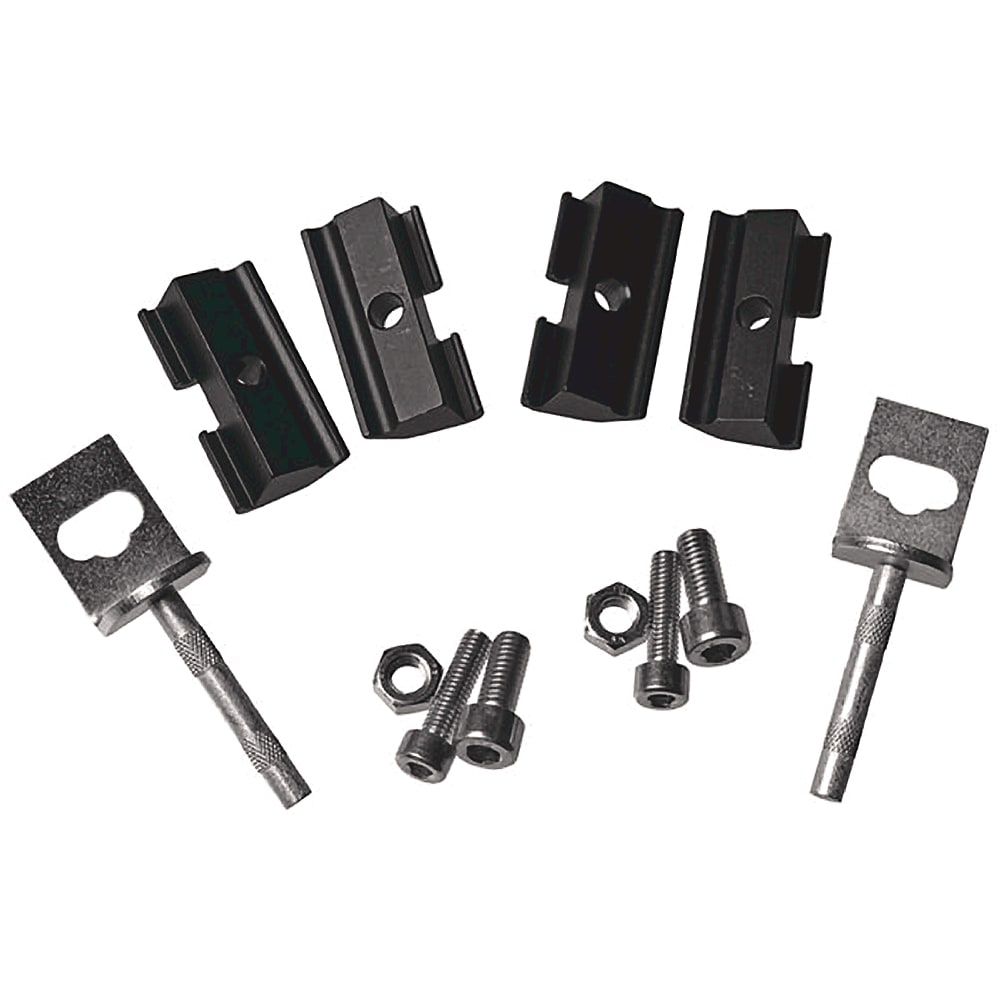

Type of accessory/spare part: Mounting bracket

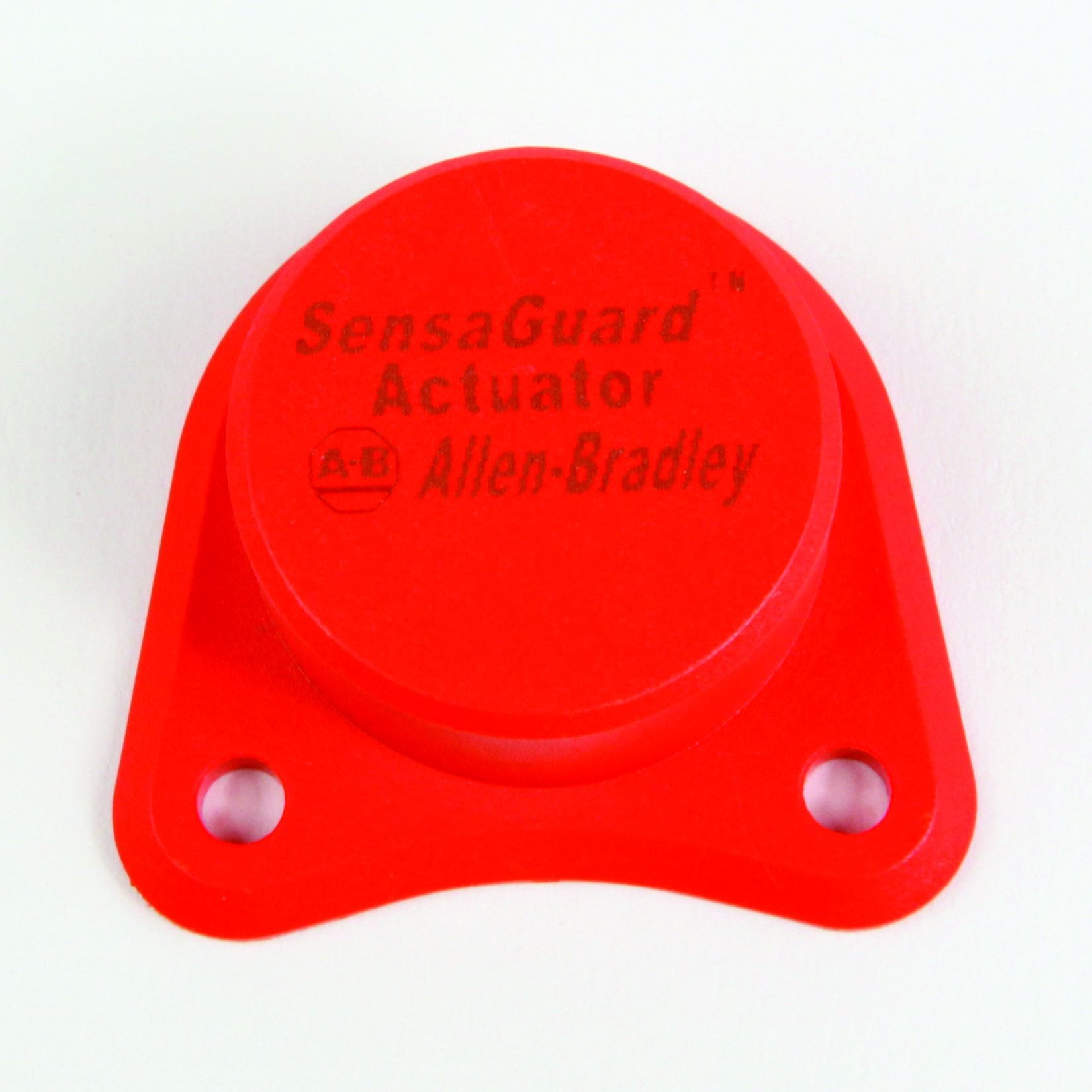

Model: Standard actuator

Type of switching contact: Quick-break switch | Type of guard locking: Quiescent current principle | With escape unlocking: no

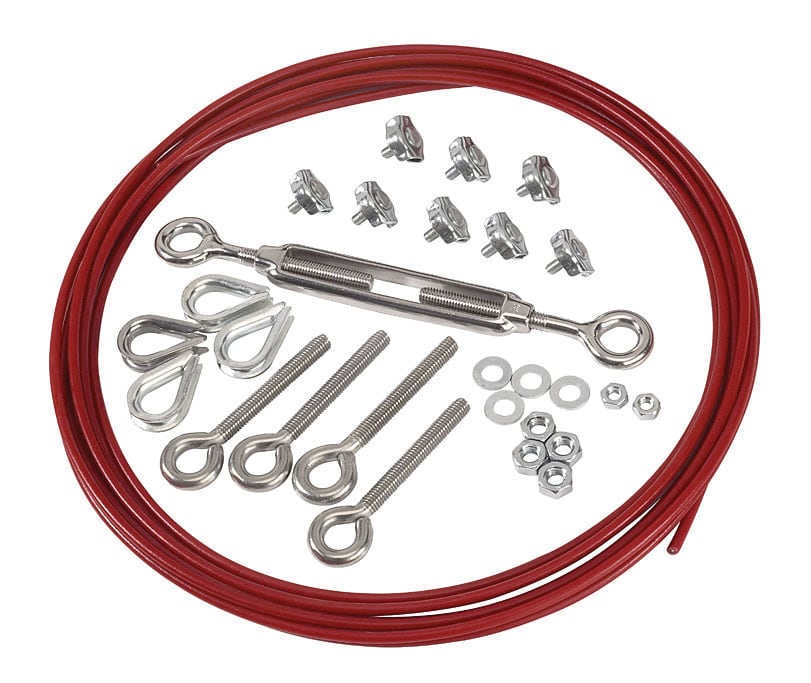

Type of accessory/spare part: Rope tensioner | Length: 20 m

Number of contacts as change-over contact: 0 | Number of contacts as normally open contact: 2 | Number of contacts as normally closed contact: 1

Type of accessory/spare part: Key actuation

Type of accessory/spare part: Cover

Model: Magnet, coded

Number of contacts as normally open contact: 1 | Type of control element: Roller lever | Number of contacts as normally closed contact: 3

Switching distance: 25 mm | Number of semiconductor outputs with signalling function: 1 | Rated supply voltage at DC: 24...24 V

Type of electric plug connection: Connector M12 | Ambient temperature: 0...55 °C | IP-rating: IP65

Model: Standard actuator
