Weidmuller

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm² | Rated current In: 27 A | Type of electrical connection 1: Screw connection

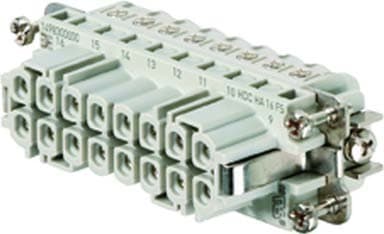

Material connector of connector insert: Thermoplastic | Contact type: Socket (Female) | Number of poles: 16

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...2.5 mm² | Rated current In: 24 A | Type of electrical connection 1: Spring clamp connection

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...10 mm² | Rated current In: 57 A | Type of electrical connection 1: Plug-in connection

Rated current In: 24 A | Model: Cross connector | Number of bridged clamps: 2

Direct mounting possible: no | Number of module positions: 36 | Rail mounting possible: no

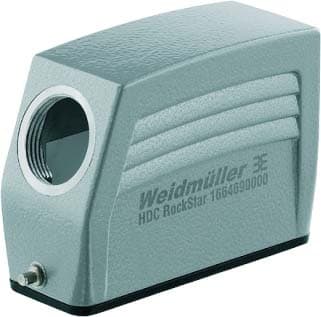

Type of housing: Plug case | Height: 54 mm | Width: 32.5 mm

Type of accessory/spare part: Other

Direction of coding: Horizontal | Modular spacing: 6 mm | Imprint: None

Type of housing: Plug case | Height: 58 mm | Width: 32 mm

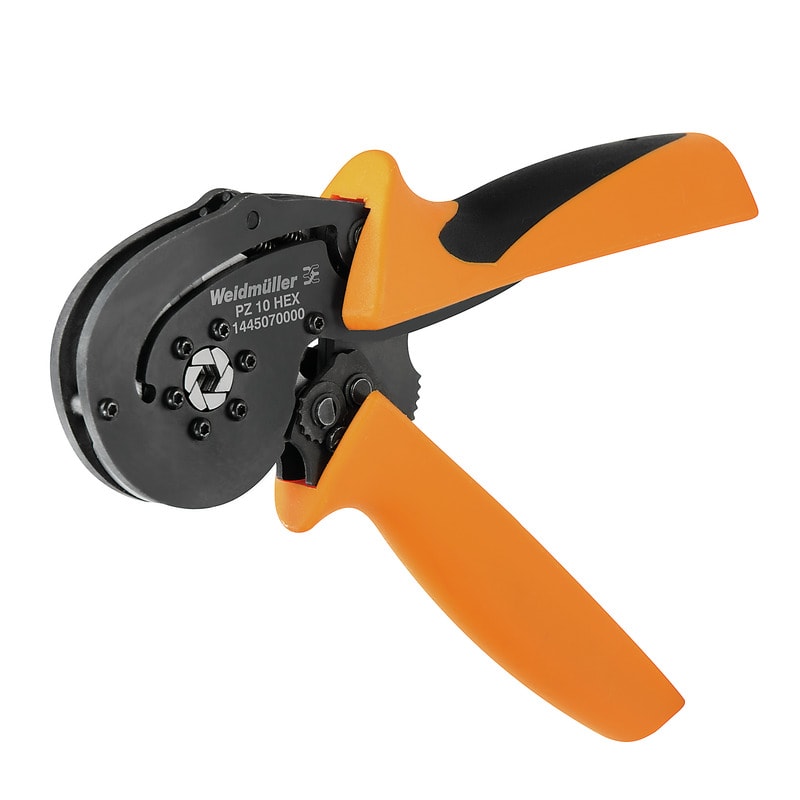

Compression shape: Hexagon | Cross section: 0.14...10 mm² | Suitable for: Cable end sleeves

Connection type: Other | Model: Plug (Male)

Input voltage at DC: 24...24 V | Type of input voltage: DC | IP-rating: IP20

Height: 260 mm | Width: 260 mm | Depth: 150 mm

Number of clamp positions per level: 2 | Rated current In: 57 A | Type of electrical connection 1: Screw connection

Direction of coding: Horizontal and vertical | Modular spacing: 6 mm | Imprint: None

Rated current In: 24 A | Model: Cross connector | Number of bridged clamps: 10

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...6 mm² | Rated current In: 32 A | Type of electrical connection 1: Spring clamp connection

Sleeve length: 14 mm | Nominal cross section: 1 mm² | Construction type: Standard

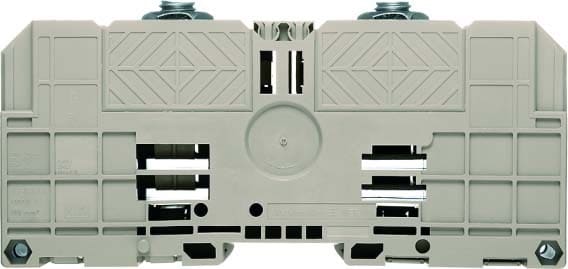

Number of clamp positions per level: 2 | Rated current In: 520 A | Type of electrical connection 1: Bolt connection

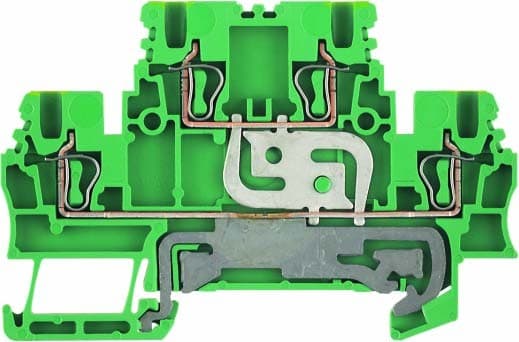

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...1.5 mm² | Rated current In: 180 A | Type of electrical connection 1: Spring clamp connection

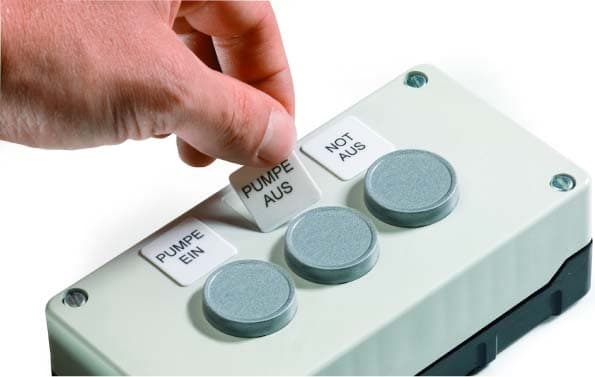

Self-adhesive: yes | Transparent: no | Colour: White

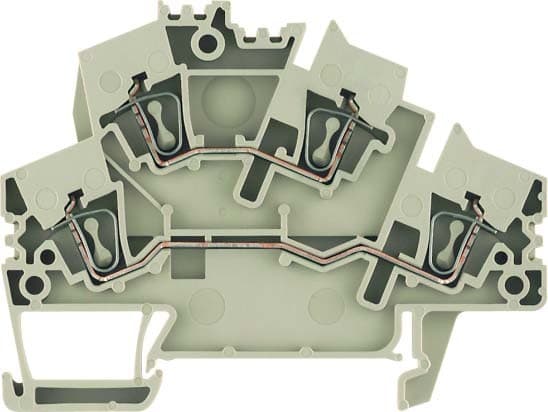

End plate required: yes | Mounting method: DIN rail (top hat rail) 35 mm | Number of levels: 2
