Weidmuller

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm²

Rated current In: 24 A

Type of electrical connection 1: Screw connection

Connectable conductor cross section fine-strand without cable end sleeve: 4...16 mm²

Rated current In: 76 A

Type of electrical connection 1: Screw connection

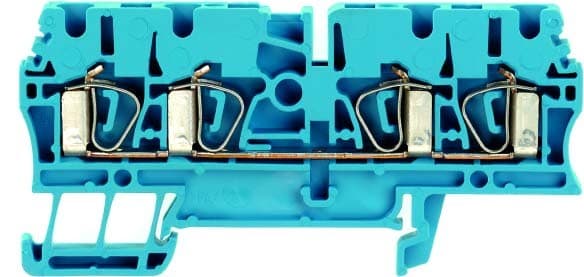

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...2.5 mm²

Rated current In: 24 A

Type of electrical connection 1: Spring clamp connection

Rated current In: 232 A

Model: Cross connector

Number of bridged clamps: 3

Direction of coding: Horizontal and vertical

Modular spacing: 5 mm

Imprint: None

Number of poles sensor/actuator slots: 5

Number of sensor-/actuator-slots: 8

Pollution degree: 3

PEN function possible: no

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm²

Type of electrical connection 1: Screw connection

Rated current In: 32 A

Model: Cross connector

Number of bridged clamps: 3

Type of end plate: yes

Type of partition: no

Colour: Blue

Rated current: 0.25 A

Release characteristic: Fast (F)

Size: 5x25 mm

Self-adhesive: yes

Text: Unprinted

Colour: Yellow

Material connector of connector insert: Thermoplastic

Contact type: Pin

Number of poles: 6

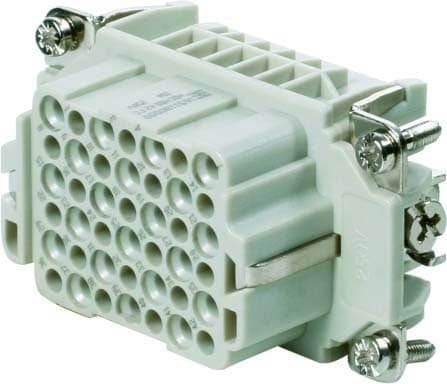

Material connector of connector insert: Thermoplastic

Contact type: Socket (Female)

Number of poles: 42

Type of electric plug connection: Other

IP-rating: IP20

Type of switch contact: Other

Number of clamp positions per level: 2

Rated current In: 192 A

Type of electrical connection 1: Screw connection

Connectable conductor cross section fine-strand without cable end sleeve: 10...35 mm²

Rated current In: 125 A

Type of electrical connection 1: Screw connection

Self-adhesive: yes

Text: Unprinted

Colour: White

Rated voltage: 500 V

Rated current In: 16 A

Number of poles: 16

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm²

Rated current In: 10 A

Type of electrical connection 1: Screw connection

Type of housing: Plug case

Height: 52 mm

Width: 43 mm

Type of end plate: yes

Type of partition: no

Colour: Beige

Accessory: yes

Type of accessory/spare part: Connecting bridge
