Weidmuller

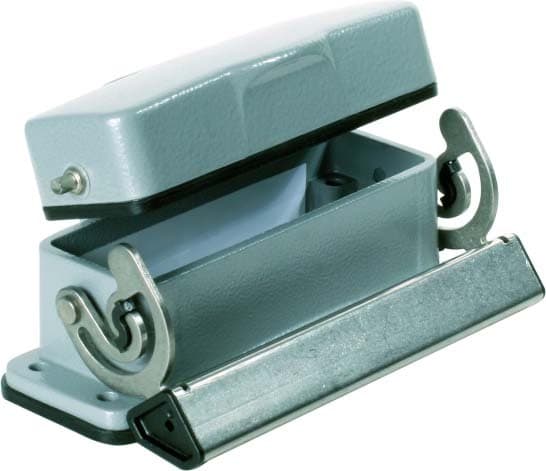

Type of housing: Socket case | Height: 76.5 mm | Width: 75.9 mm

Primary voltage: 9.6...14.4 V | Secondary voltage: 3...48 V | Rated operation current Ie: 0.1 A

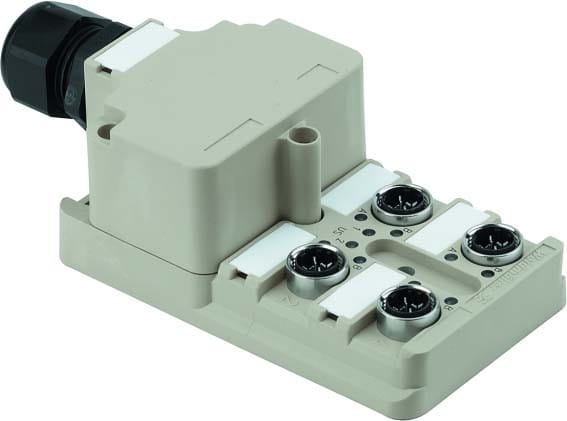

Type of branches for sensor-/actuator cables: Other | Number of poles sensor/actuator slots: 3 | Number of sensor-/actuator-slots: 4

Nominal voltage DC: 68...68 V | Max. continuous voltage AC: 60 V | Nominal voltage AC: 48...48 V

Modular spacing connections: 5.08 mm | Rated current In: 16 A | Number of electrical connections: 2

Type of plug-in contact, field sided: Male (plug) | Type of electrical connection, field-sided: M8 | Number of poles: 3

Type of electrical connection, control sided: Other | Type of electrical connection, field-sided: Screw connection | Number of poles: 20

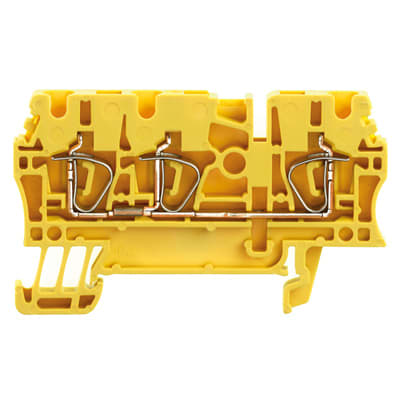

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm² | Rated current In: 24 A | Type of electrical connection 1: Spring clamp connection

Type of plug-in contact, field sided: Male (plug) | Type of electrical connection, field-sided: M12 | Number of poles: 5

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm² | Rated current In: 20 A | Type of electrical connection 1: Screw connection

Modular spacing connections: 5.08 mm | Rated current In: 16 A | Number of electrical connections: 44

Type of accessory/spare part: Test plug socket

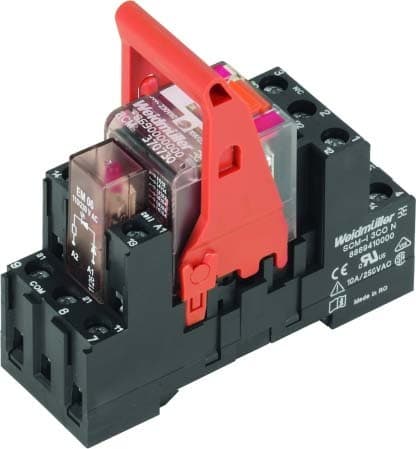

Complete with socket: yes | Type of electric plug connection: Insulation displacement connection | Rated control supply voltage Us at AC 50HZ: 230...230 V

Modular spacing connections: 5.08 mm | Rated current In: 16 A | Number of electrical connections: 46

Type of electrical connection, control sided: Other | Rated voltage: 250 V | Type of electrical connection, field-sided: Screw connection

Type of electrical connection, control sided: Other | Rated voltage: 250 V | Type of electrical connection, field-sided: Screw connection
