Weidmuller

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm²

Rated current In: 24 A

Type of electrical connection 1: Spring clamp connection

Mounting method: Direct mounting

Permitted cable diameter: 13.5...13.5 mm

Width: 20.1 mm

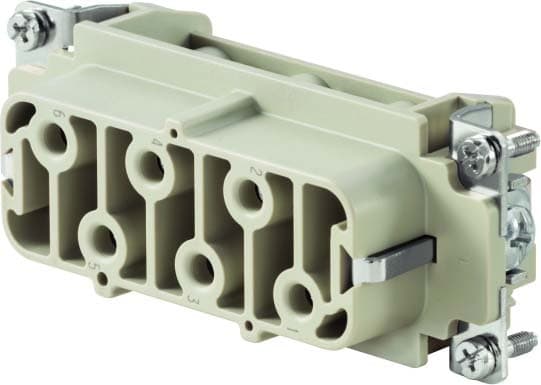

Material connector of connector insert: Thermoplastic

Contact type: Socket (Female)

Number of poles: 6

Material connector of connector insert: Thermoplastic

Contact type: Socket (Female)

Number of poles: 10

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm²

Rated current In: 32 A

Type of electrical connection 1: Plug-in connection

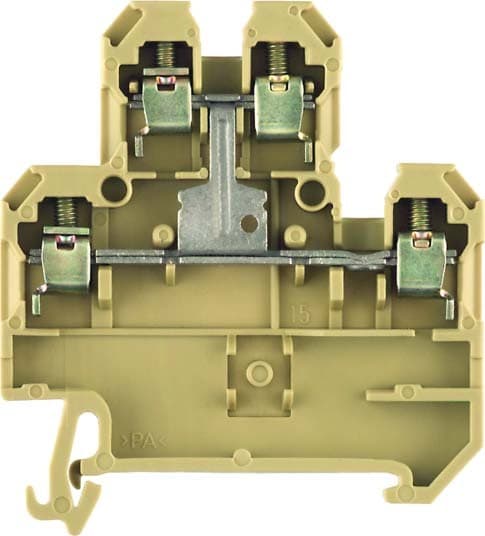

Type of end plate: yes

Type of partition: no

Colour: Beige

End plate required: yes

Mounting method: DIN rail (top hat rail) 35 mm

Number of levels: 2

Model: Roller shape

Material: Plastic

Cable diameter: 1...5 mm

Type of end plate: yes

Type of partition: yes

Colour: Beige

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...1.5 mm²

Rated current In: 16 A

Type of electrical connection 1: Plug-in connection

Sleeve length: 36 mm

Nominal cross section: 25 mm²

Construction type: Standard

Type of housing: Other

Height: 76 mm

Width: 59 mm

Type of fastening: Screwing

Category: 6

Duct installation: no

Rated current: 6.3 A

Release characteristic: Fast (F)

Size: 5x25 mm

Type of end plate: no

Type of partition: yes

Colour: Beige

Rated current In: 27 A

Model: Cross connector

Number of bridged clamps: 75

Model: Roller shape

Material: Plastic

Cable diameter: 1...3 mm

Type of end plate: yes

Type of partition: no

Colour: Beige

Type of housing: Plug case

Height: 52 mm

Width: 43 mm

Compression shape: Trapezoid compression

Cross section: 0.5...6 mm²

Suitable for: Cable lugs and connectors

PEN function possible: no

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...10 mm²

Type of electrical connection 1: Screw connection

Direction of coding: Horizontal

Modular spacing: 6.5 mm

Imprint: Numbers
