Weidmuller

Connectable conductor cross section fine-strand without cable end sleeve: 16...16 mm² | Contact type: Pin | Max. rated current of one contact: 100 A

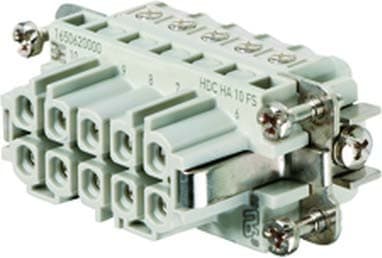

Material connector of connector insert: Thermoplastic | Contact type: Socket (Female) | Number of poles: 10

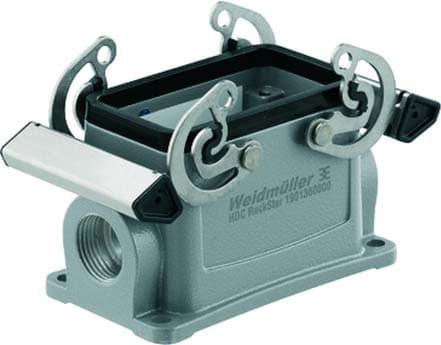

Type of housing: Socket case | Height: 57 mm | Width: 53.5 mm

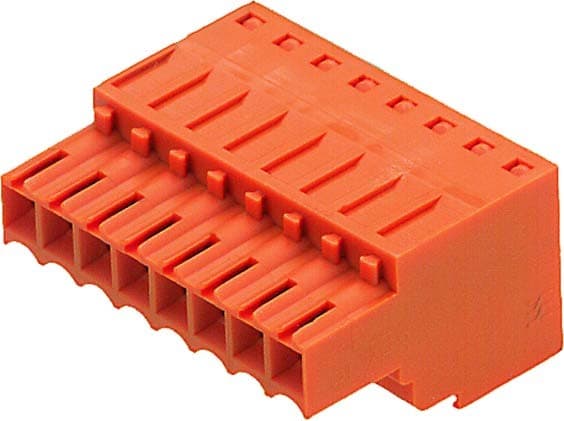

Type of connection: Printed circuit board to cable | Contact type: Socket (Female) | Number of poles: 12

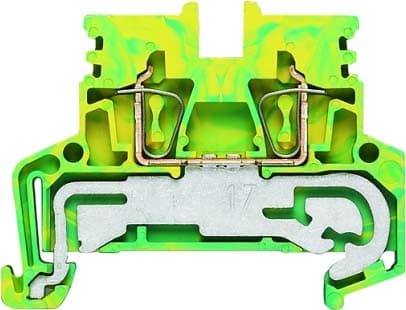

PEN function possible: no | Connectable conductor cross section fine-strand without cable end sleeve: 0.5...2.5 mm² | Type of electrical connection 1: Spring clamp connection

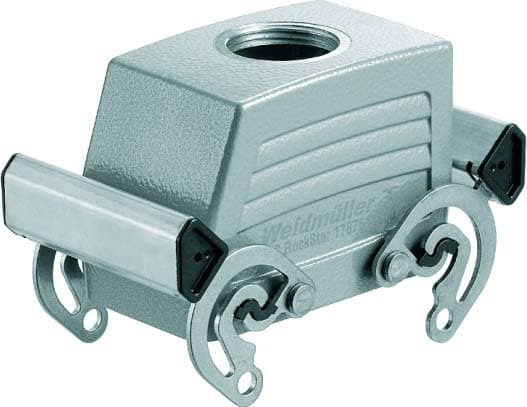

Type of housing: Plug case | Height: 52 mm | Width: 55 mm

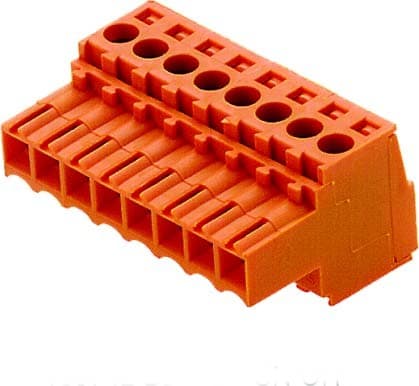

Type of connection: Printed circuit board to cable | Contact type: Socket (Female) | Number of poles: 3

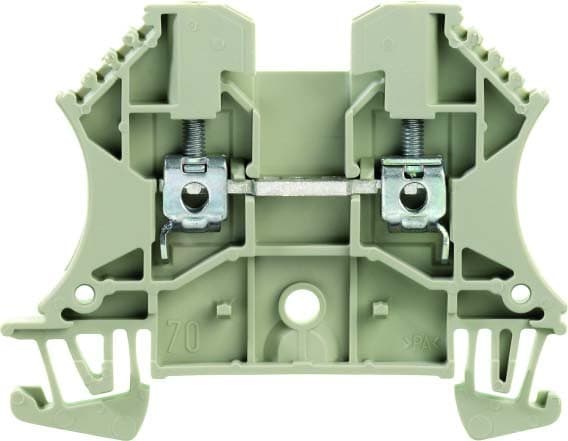

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm² | Rated current In: 24 A | Type of electrical connection 1: Screw connection

Signalling at the device: None | Mounting method: DIN rail (top hat rail) 35 mm | Number of poles: 2

Direct mounting possible: no | Number of module positions: 2 | Rail mounting possible: no

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...2.5 mm² | Rated current In: 20 A | Type of electrical connection 1: Spring clamp connection

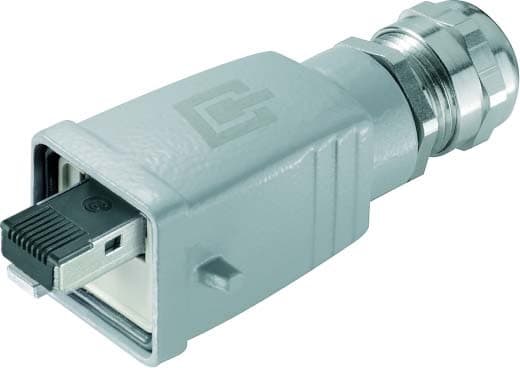

Shielded: yes | Type of connector: RJ45 8(8) | Model: Plug (Male)

Direct mounting possible: no | Number of module positions: 12 | Rail mounting possible: no

Type of connection: Printed circuit board to cable | Contact type: Pin | Number of poles: 3

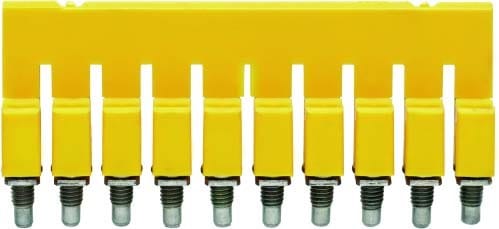

Rated current In: 112 A | Model: Cross connector | Number of bridged clamps: 10

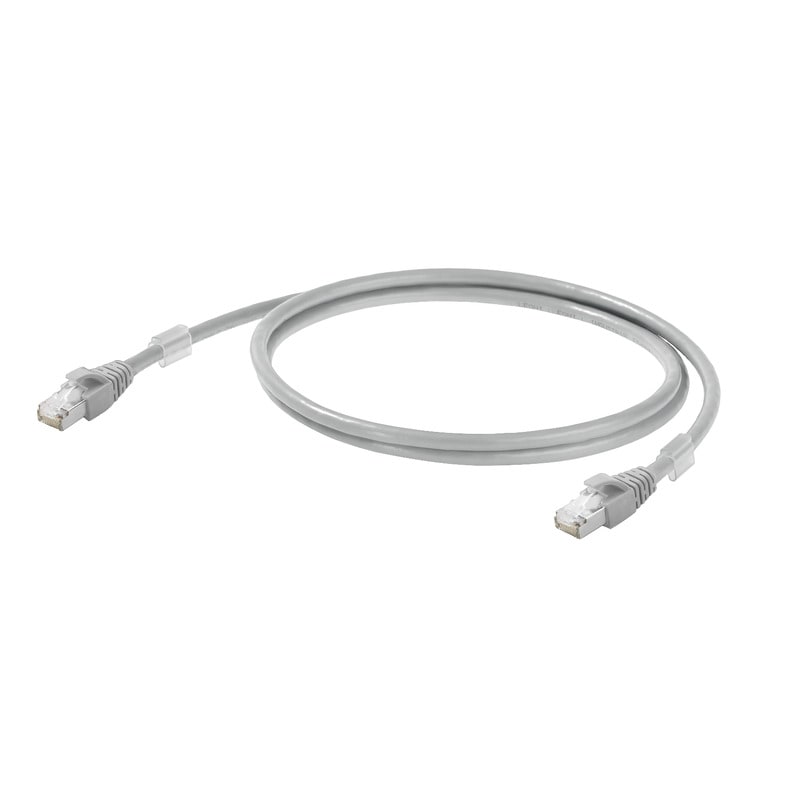

Cable type: S/FTP | Category: 6A (IEC) | Length: 0.25 m

Material connector of connector insert: Thermoplastic | Contact type: Socket (Female) | Number of poles: 18

Number of ports 10/100 Mbps RJ45: 2 | Ethernet: yes | Number of ports 10/100/1000 Mbps RJ45: 4

Type of connection: Printed circuit board to cable | Contact type: Pin | Number of poles: 2

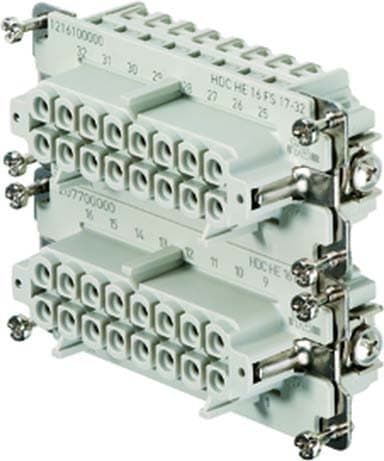

Material connector of connector insert: Thermoplastic | Contact type: Socket (Female) | Number of poles: 16

Self-adhesive: yes | Text: Unprinted | Colour: Grey

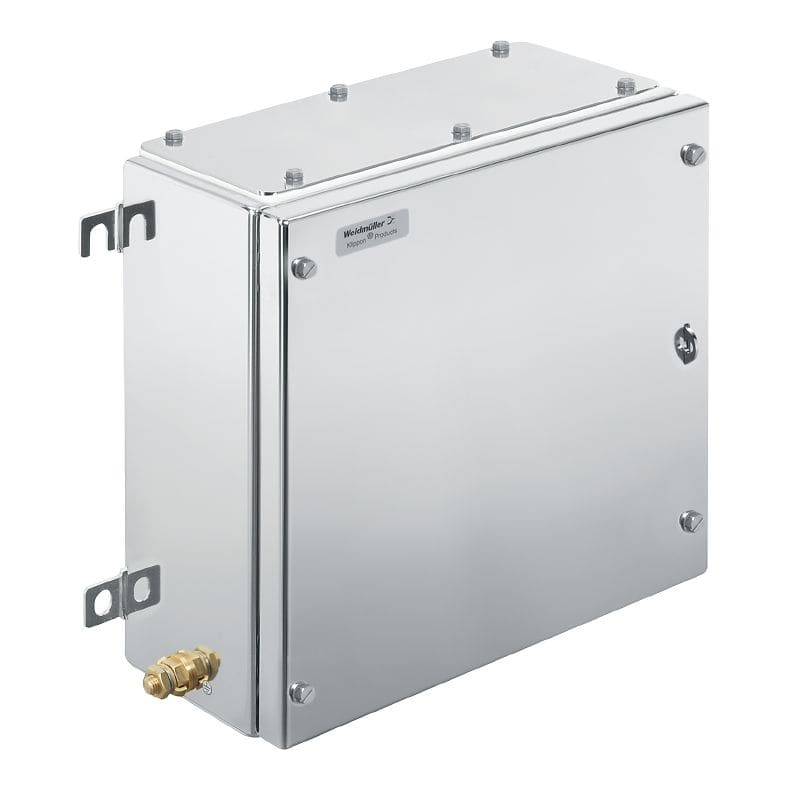

Height: 306 mm | Width: 306 mm | Depth: 150 mm

Sleeve length: 14 mm | Nominal cross section: 0.75 mm² | Construction type: Standard

Type of housing: Plug case | Height: 58 mm | Width: 32.5 mm
