Weidmuller

Type of accessory/spare part: Clamp bracket

Height: 120 mm

Width: 120 mm

Depth: 80 mm

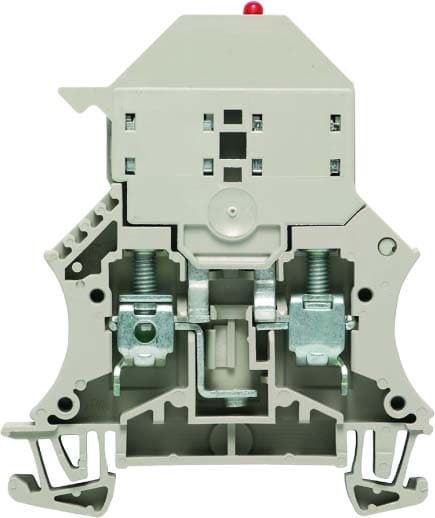

Type of fuse insert: G-fuse 5x20 mm

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm²

Type of fuse holder: Swivelling

Self-adhesive: no

Text: Unprinted

Colour: White

Direction of coding: Horizontal and vertical

Modular spacing: 5 mm

Imprint: None

Direction of coding: Horizontal and vertical

Modular spacing: 6 mm

Imprint: None

Type of accessory/spare part: Cover

Type of end plate: no

Type of partition: no

Colour: Beige

Punch shape: Long-slot

Model: DIN rail (top hat rail) 15 mm

Material: Steel

Direction of coding: Horizontal

Modular spacing: 8 mm

Imprint: Symbols

Rated current In: 57 A

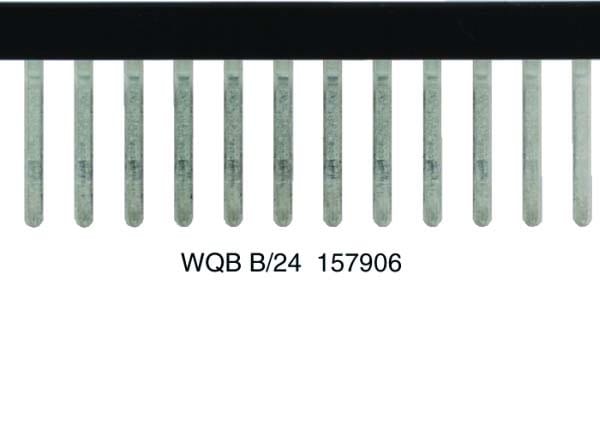

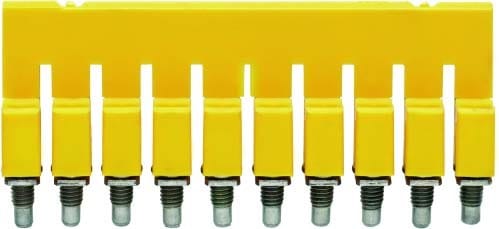

Model: Cross connector

Number of bridged clamps: 2

PEN function possible: no

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm²

Type of electrical connection 1: Spring clamp connection

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...1.5 mm²

Rated current In: 17.5 A

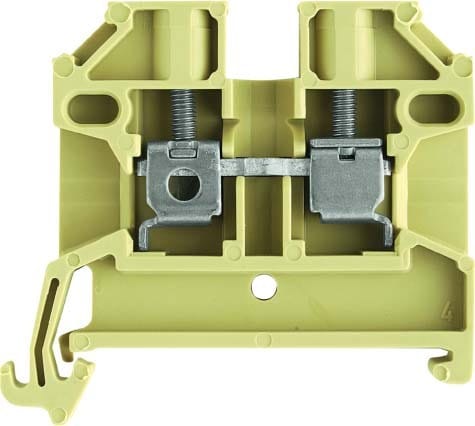

Type of electrical connection 1: Screw connection

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...2.5 mm²

Rated current In: 24 A

Type of electrical connection 1: Spring clamp connection

Rated current In: 32 A

Model: Cross connector

Number of bridged clamps: 2

Type of fuse insert: G-fuse 5x20 mm

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm²

Type of fuse holder: Swivelling

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm²

Rated current In: 32 A

Type of electrical connection 1: Screw connection

Connectable conductor cross section fine-strand without cable end sleeve: 1.5...1.5 mm²

Contact type: Pin

Max. rated current of one contact: 10 A

Mounting method: DIN rail (top hat rail) 35 mm

Type of latching: Screw less

Colour: Beige

Type of end plate: yes

Type of partition: yes

Colour: Beige

Length: 30 mm

Material: Plastic

Width: 4 mm

Type of end plate: yes

Type of partition: no

Colour: Beige

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...2.5 mm²

Rated current In: 24 A

Type of electrical connection 1: Plug-in connection

Direction of coding: Horizontal

Modular spacing: 5 mm

Imprint: None
