Weidmuller

Connectable conductor cross section fine-strand without cable end sleeve: 1.5...16 mm²

Rated current In: 57 A

Type of electrical connection 1: Screw connection

Type of housing: Plug case

Height: 61 mm

Width: 45.5 mm

Number of clamp positions per level: 2

Rated current In: 101 A

Type of electrical connection 1: Screw connection

Nominal voltage DC: 34...34 V

Max. continuous voltage AC: 28 V

Nominal voltage AC: 24...24 V

Transparent: yes

Length: 500 mm

Colour: Other

Complete with socket: yes

Type of electric plug connection: Screw connection

Rated control supply voltage Us at DC: 24...24 V

Rated current: 2 A

Release characteristic: Fast (F)

Size: 5x25 mm

PEN function possible: no

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...6 mm²

Type of electrical connection 1: Plug-in connection

Rated current: 5 A

Release characteristic: Fast (F)

Size: 5x25 mm

Type of accessory/spare part: Other

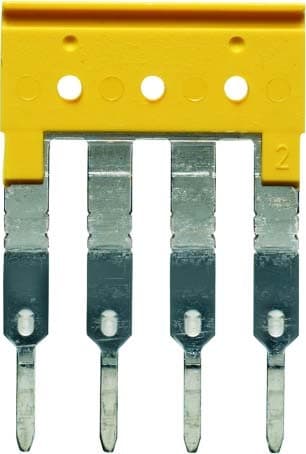

Rated current In: 32 A

Model: Cross connector

Number of bridged clamps: 4

Type of housing: Plug case

Height: 79 mm

Width: 82.5 mm

Number of clamp positions per level: 2

Rated current In: 125 A

Type of electrical connection 1: Screw connection

Rated current In: 63 A

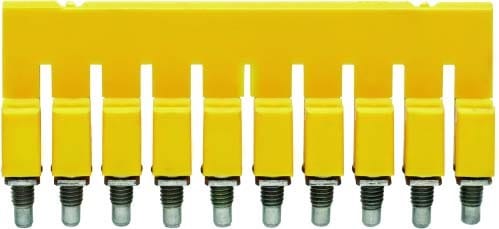

Model: Cross connector

Number of bridged clamps: 10

Rated current: 0.5 A

Release characteristic: Fast (F)

Size: 5x20 mm

Rated current: 1.6 A

Release characteristic: Fast (F)

Size: 5x25 mm

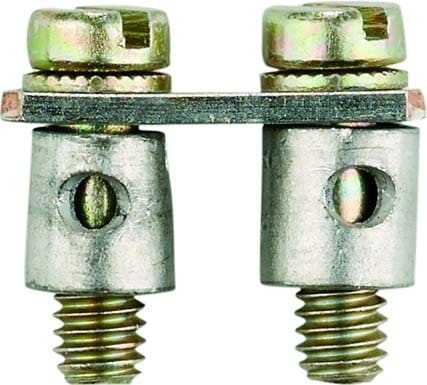

Rated current In: 17.5 A

Model: Cross connector

Number of bridged clamps: 2

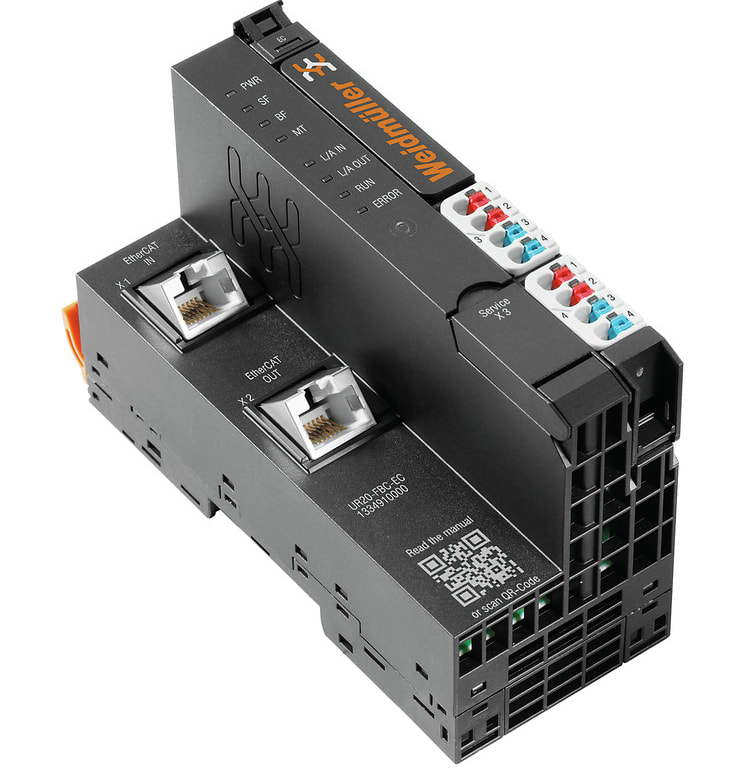

Connection type connection 1: Socket (Female)

Connection 1: RJ45 8(4)

Connection 2: Other

Input voltage at DC: 24...24 V

Type of input voltage: DC

Fieldbus connection via separate bus coupler possible: no

Self-adhesive: no

Text: Unprinted

Colour: Other

Type of fuse insert: G-fuse 5x20 mm

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...4 mm²

Type of fuse holder: Pluggable

Connectable conductor cross section fine-strand without cable end sleeve: 0.5...10 mm²

Rated current In: 41 A

Type of electrical connection 1: Screw connection

Nominal voltage DC: 60...60 V

Max. continuous voltage AC: 48 V

Nominal voltage AC: 48...48 V

Type of accessory/spare part: Other
