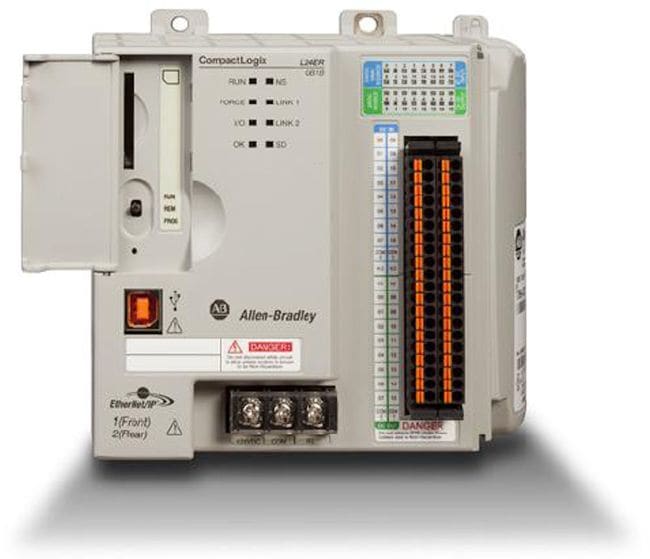

Allen-Bradley - CompactLogix 750KB DI/O AI/O Controller - 1769-L24ER-QBFC1B

Model:

Compact

Number of digital outputs:

16

Number of relay outputs:

0

Number of HW-interfaces industrial Ethernet:

2

Number of HW-interfaces RS-232:

0

Number of HW-interfaces USB:

1

Number of analogue outputs:

2

Number of analogue inputs:

4

Number of digital inputs:

16

Supporting protocol for TCP/IP:

yes

Supporting protocol for MODBUS:

yes

Supporting protocol for Data-Highway:

no

Supporting protocol for SERCOS:

no

Supporting protocol for EtherNet/IP:

yes

Display:

yes

Memory size:

750 kByte

Rail mounting possible:

yes

Wall mounting/direct mounting:

no

Front installation possible:

yes

Rack-assembly possible:

no

SIL according to IEC 61508:

3

Performance level acc. to EN ISO 13849-1:

Level e

Width:

140 mm

Height:

118 mm

Depth:

105 mm
