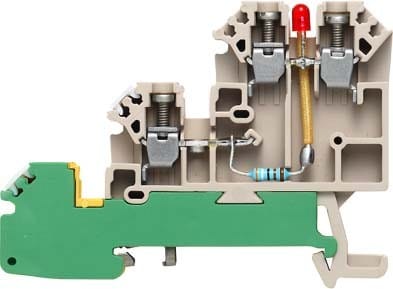

Weidmuller - DLA 2.5/LD-RT DB - 1783600000

Connectable conductor cross section fine-strand without cable end sleeve:

0.5...4 mm²

Rated current In:

17.5 A

Rated voltage:

30 V

Number of clamp positions per level:

2

Type of electrical connection 1:

Screw connection

Connectable conductor cross section fine-strand with cable end sleeve:

0.5...2.5 mm²

Connectable conductor cross section solid-core:

0.5...4 mm²

Connectable conductor cross section multi-wired:

1.5...4 mm²

Number of levels:

3

Internally connected levels:

yes

Type of electrical connection 2:

Screw connection

Mounting method:

DIN rail (top hat rail) 35 mm

Material insulation body:

Thermoplastic

Operation temperature:

-50...120 °C

Inflammability class of insulation material acc. with UL94:

V0

Width:

6.1 mm

Depth:

48.5 mm

Explosion-tested version 'Ex e':

no

End plate required:

yes

Colour:

Beige

Colour lamp:

Red

With PE connection:

yes

With power supply function:

yes
