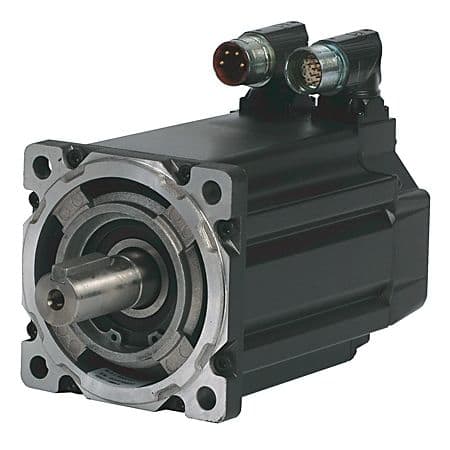

Allen-Bradley - 400V,215mm Frame,2250rpm,Multi,24V DC - MPM-B2153E-MJ74AA
/ each
£6,479.48
Delivery
Essential specifications
Model - Rotary current synchronous motor
Rated voltage - 460 V
Number of phases - 3
Rated performance at rated frequency - 7.2 kW
Rated rotational speed at rated frequency - 2250 1/min
Packaging
1 each
GTIN
00884951114319
Supplier Ref
MPM-B2153E-MJ74AA
Manufacturer Ref
MPM-B2153E-MJ74AA
Commercial Reference
MPM-B2153E-MJ74AA
Model:
Rotary current synchronous motor
Rated voltage:
460 V
Number of phases:
3
Rated performance at rated frequency:
7.2 kW
Rated rotational speed at rated frequency:
2250 1/min
Rated frequency:
0...400 Hz
Voltage type:
AC
IP-rating:
IP67
Duty cycle:
S1
Frame size acc. to IEC:
215 mm
Nominal torque:
47.9 Nm
Operation temperature:
0...40 °C
Bulletin MPM - Medium-Inertia Servo Motors Product, 460 V, 2250 RPM, Multi-turn High-resolution Encoder (absolute feedback). Keyed Shaft Extension, SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
