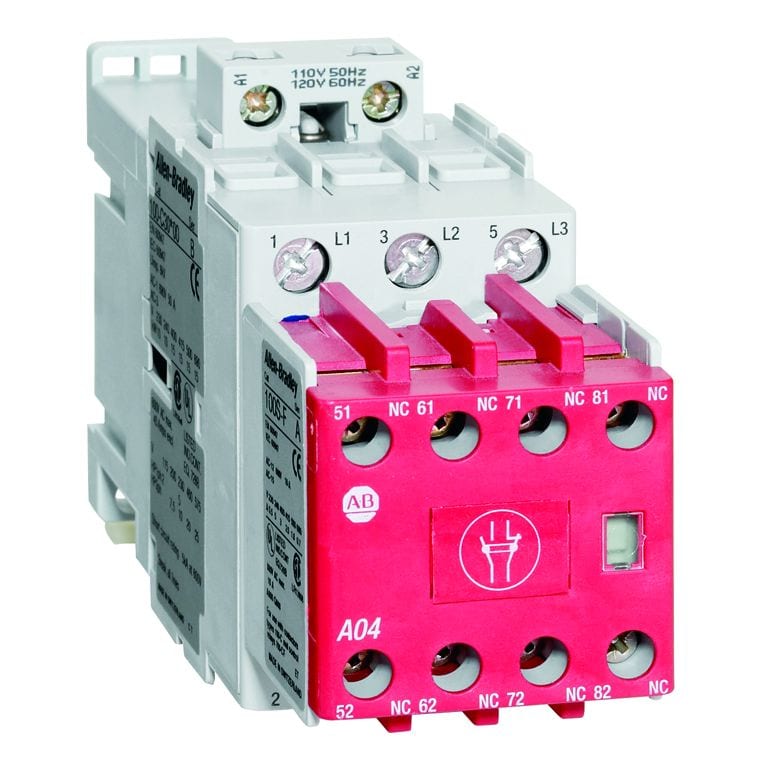

Allen-Bradley - 9 A SAFETY CONTACTOR - 100S-C09KF14BC
/ each
£81.81
Delivery
Essential specifications
Rated control supply voltage Us at AC 50HZ - 195.5...253 V
Voltage type for actuating - AC
Rated operation power at AC-3, 400 V - 4 kW
Number of normally closed contacts as main contact - 0
Number of main contacts as normally open contact - 3
Packaging
1 each
GTIN
10781180939133
Supplier Ref
100S-C09KF14BC
Manufacturer Ref
100S-C09KF14BC
Commercial Reference
100S-C09KF14BC
Rated control supply voltage Us at AC 50HZ:
195.5...253 V
Voltage type for actuating:
AC
Rated operation power at AC-3, 400 V:
4 kW
Number of normally closed contacts as main contact:
0
Number of main contacts as normally open contact:
3
Connection type main current circuit:
Screw connection
Rated operation current Ie at AC-1, 400 V:
32 A
Rated operation current Ie at AC-3, 400 V:
9 A
Number of auxiliary contacts as normally open contact:
1
Number of auxiliary contacts as normally closed contact:
4
Suitable for DIN installation panels:
no
- Red contact housing for easy identification AC and DC operating coils Complete range of accessories Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils 100S-C/104S-C Safety Contactors Mechanically linked N.C. auxiliary contacts Front-mounted auxiliary contacts AC and DC operating coils SUVA Third-Party certification
