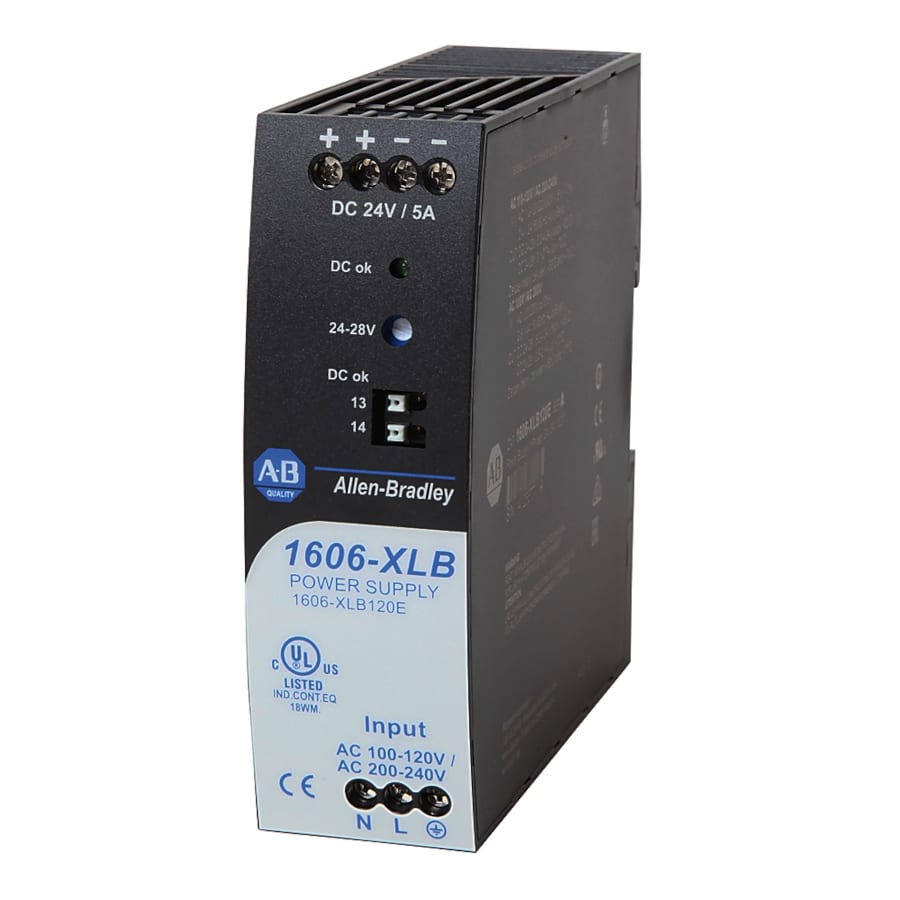

Allen-Bradley - Allen Bradley Switched Mode Basic Power Supply 24V DC 5A - 1606-XLB120E
/ each
£144.95
Delivery
Essential specifications
Voltage type of supply voltage - AC
1st secondary output voltage - 24...28 V
Max. output current 1 - 5 A
Nominal value output voltage 1 - 24 V
Rated supply voltage at AC 50 Hz - 85...132 V
Packaging
1 each
GTIN
00889508133898
Supplier Ref
1606-XLB120E
Manufacturer Ref
1606-XLB120E
Commercial Reference
1606-XLB120E
Voltage type of supply voltage:
AC
1st secondary output voltage:
24...28 V
Max. output current 1:
5 A
Nominal value output voltage 1:
24 V
Rated supply voltage at AC 50 Hz:
85...132 V
Rated supply voltage at AC 60 Hz:
170...264 V
Power output:
120 W
Type of electric plug connection:
Screw connection
Rail mounting possible:
yes
Width:
39 mm
Height:
124 mm
Depth:
124 mm
IP-rating:
IP20
Allen Bradley Switched Mode Basic Power Supply 24V DC 85-132/170-264V AC Input 5A DIN Rail Mounted. Our Bulletin 1606-XLB Basic Switched Mode Power Supplies are available in 24V DC sizes from 1.5...20A. These power supplies are cost-effective, provide efficiency up to 95.2%, and are rated for long service life.
- Includes rated outputs between 80…960 W (3.3…40 A at 24V DC)
- Offers multiple single and three-phase inputs for global applications
- Includes a cost-effective solution for single-phase applications
- Provides redundancy modules for managing dual power supplies for back-up power
