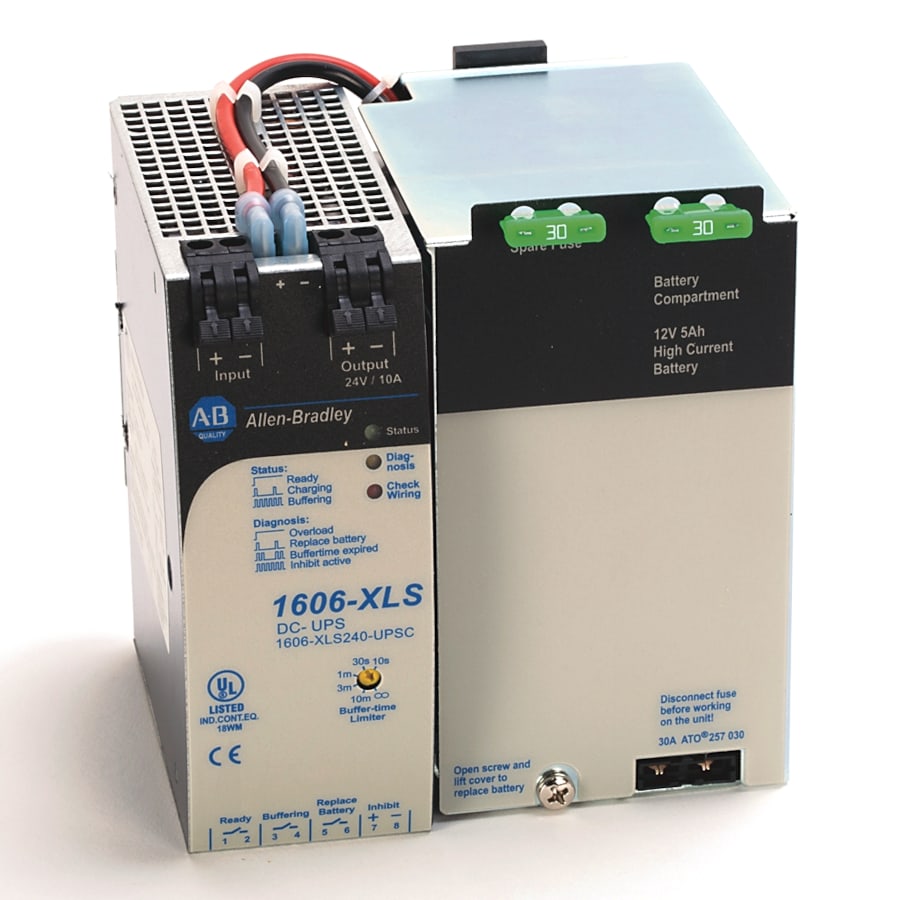

Allen-Bradley - Allen Bradley UPS Performance Power Supply 24V DC 10A - 1606-XLS240-UPSC
/ each
£492.82
Delivery
Essential specifications
Voltage type of supply voltage - DC
1st secondary output voltage - 22.25...22.25 V
Max. output current 1 - 15 A
Nominal value output voltage 1 - 22.25 V
Nominal value output current 1 - 10 A
Packaging
1 each
GTIN
10612598420886
Supplier Ref
1606-XLS240-UPSC
Manufacturer Ref
1606-XLS240-UPSC
Commercial Reference
1606-XLS240-UPSC
Voltage type of supply voltage:
DC
1st secondary output voltage:
22.25...22.25 V
Max. output current 1:
15 A
Nominal value output voltage 1:
22.25 V
Nominal value output current 1:
10 A
Rated supply voltage at DC:
110...150 V
Power output:
240 W
Type of electric plug connection:
Spring clamp connection
Rail mounting possible:
yes
Width:
123 mm
Height:
124 mm
Depth:
119 mm
IP-rating:
IP20
Allen Bradley UPS Performance Power Supply 24V DC 12V Battery Input 10A DIN Rail Mounted. This uninterruptible power supply (UPS) controller 1606-XLS240-UPSC is an addition to standard 24V power supplies to bridge power failures or voltage fluctuations.
- Industry-Leading Efficciency
- Intelligent circuit design with long-life electrolytic capacitors
- Generates minimal heat
- Allows up to 50% additional power reserve without reducing output voltage, while minimizing ripple and noise
- Wide Power Range and Feature Set
- Multiple single- and three-phase inputs available for global applications
- Redundancy modules provide a means for managing dual power supplies for back-up power
- Multiple output voltages available
- Compact Size
- Saves space on plant floor
- Expands plant flexibility
- Approvals
- CE marked
- cULus and cURus listed
