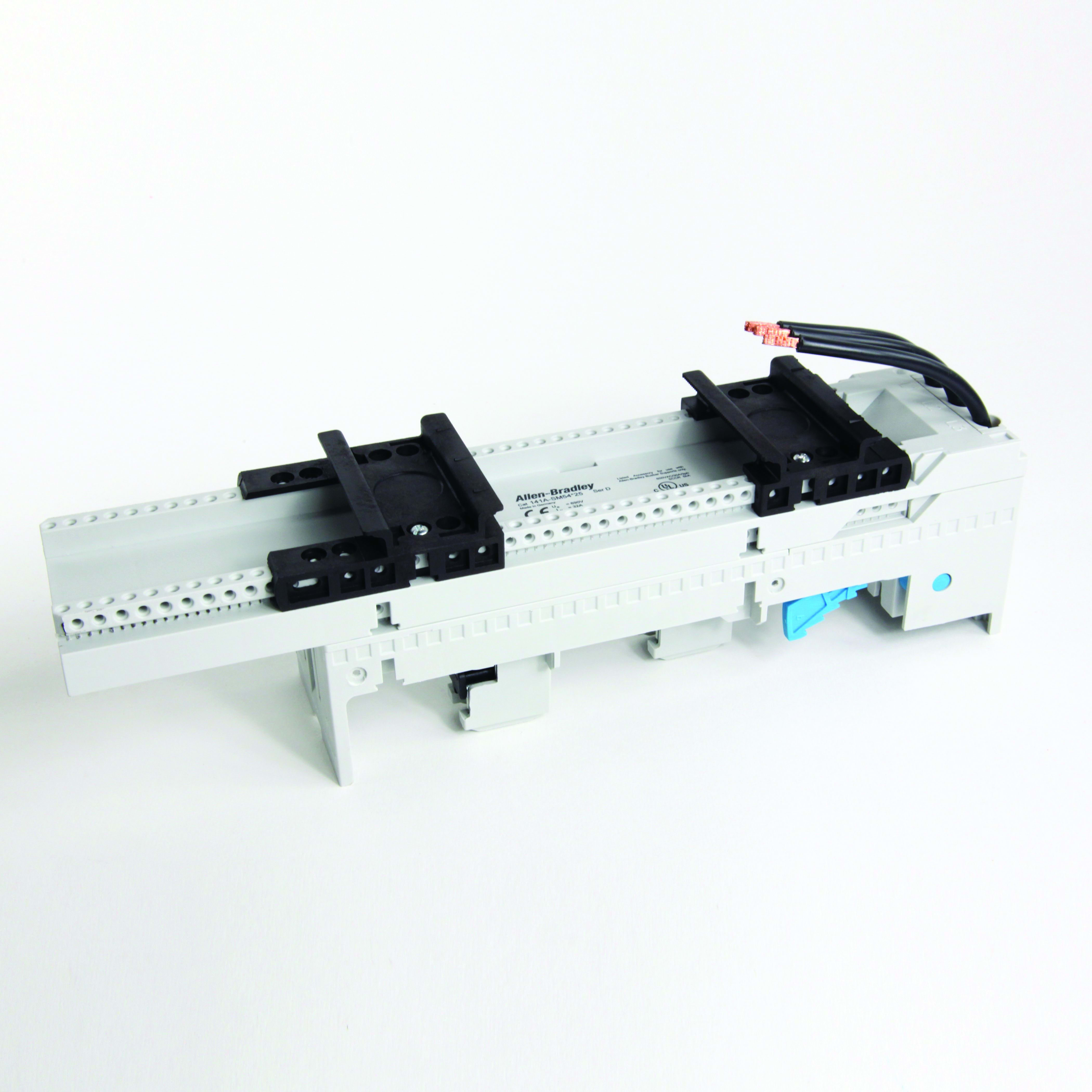

Allen-Bradley - B/B Mod hgt 260 mm 54 mm25 A - 141A-SM54RS25

Standard Busbar Mounting Module. 25A. 54 x 260mm. Wires on DAP for connection. For use with 5/10mm thick busbar

• Two-part construction

• – Device Adapter Plate (DAP) (carrying the starter) snaps onto the base adapter

• – Base adapter remains on busbar when exchanging starters, providing isolation from live parts

• Test position with load circuit isolated

• Optional control plug makes the starter fully pluggable

• Adapters with assigned current ratings supply the load current to the starter/loadfeeder by means of wire connections

• Multiple adapters can be combined to bigger platforms by use of the connection clips

• Fits on 5 mm or 10 mm thick busbars

• Meets feeder circuit spacings per UL 508A
