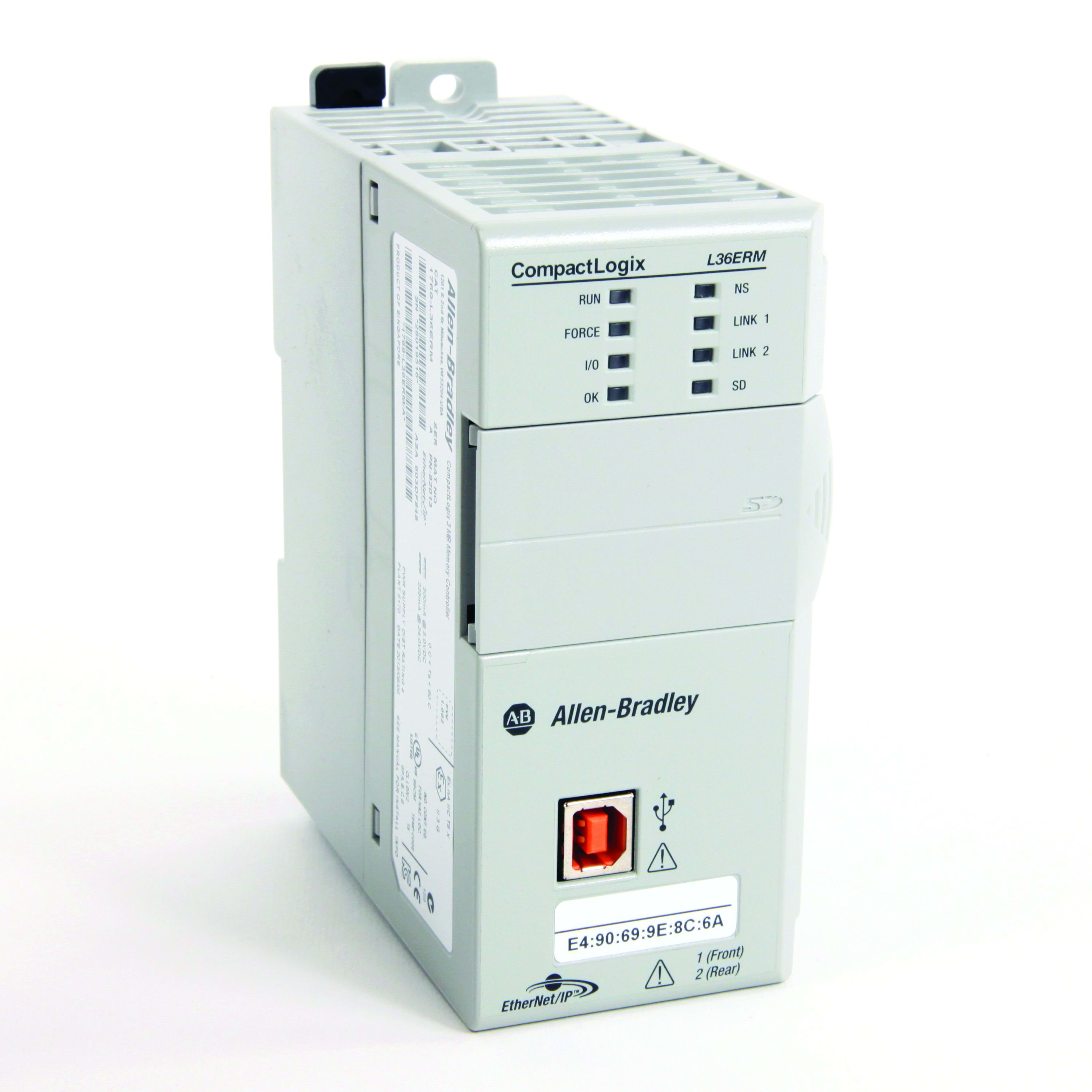

Allen-Bradley - CompactLogix Dual Ethernet 3MB 30 I/O - 1769-L36ERM
/ each
£6,270.15
Delivery
Essential specifications
Model - Compact
Number of relay outputs - 0
Number of HW-interfaces industrial Ethernet - 2
Number of HW-interfaces USB - 1
Supporting protocol for TCP/IP - yes
Packaging
1 each
GTIN
10885630101238
Supplier Ref
1769-L36ERM
Manufacturer Ref
1769-L36ERM
Commercial Reference
1769-L36ERM
Model:
Compact
Number of relay outputs:
0
Number of HW-interfaces industrial Ethernet:
2
Number of HW-interfaces USB:
1
Supporting protocol for TCP/IP:
yes
Supporting protocol for MODBUS:
no
Supporting protocol for Data-Highway:
no
Supporting protocol for SERCOS:
no
Supporting protocol for EtherNet/IP:
yes
Display:
yes
Memory size:
3072 kByte
Rail mounting possible:
yes
Wall mounting/direct mounting:
no
Front installation possible:
yes
Rack-assembly possible:
no
SIL according to IEC 61508:
3
Performance level acc. to EN ISO 13849-1:
Level e
Width:
234 mm
Height:
239 mm
Depth:
155 mm
CompactLogix 5370 L3 Controllers, Dual Ethernet w/DLR capability, 3MB memory, 30 I/O Expansion, 48 Ethernet IP Nodes, 16 Axis CIP motion with Kinematics function. Controllers are shipped with 1GB SD card and can support up to 2GB SD card.
- Expanding on the scalability of the Logix family of controllers, the CompactLogix 5370 L3 programmable automation controllers (PAC) are designed to meet the growing need for a higher performance controller in a compact and affordable package.
