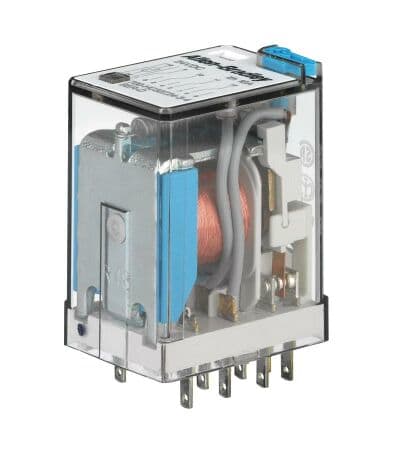

Allen-Bradley - CONTROL RELAY - 700-HC22A1-3-4
/ each
£14.90
Delivery
Essential specifications
Type of electric plug connection - Plug-in connection
Rated control supply voltage Us at AC 50HZ - 120...120 V
Voltage type for actuating - AC
With LED indication - yes
Rated control supply voltage Us at AC 60HZ - 120...120 V
Packaging
1 each
GTIN
10611320781868
Supplier Ref
700-HC22A1-3-4
Manufacturer Ref
700-HC22A1-3-4
Commercial Reference
700-HC22A1-3-4
Type of electric plug connection:
Plug-in connection
Rated control supply voltage Us at AC 50HZ:
120...120 V
Voltage type for actuating:
AC
With LED indication:
yes
Rated control supply voltage Us at AC 60HZ:
120...120 V
Number of contacts as change-over contact:
2
Type of switch contact:
Single contact
Nominal current:
10 A
IP-rating:
IP20
Width:
27.7 mm
Height:
36.7 mm
Depth:
20.7 mm
700-HC General Purpose Square w/ Blade Terminal Relay, DPDT, 10A, Contact, Low Energy Rating: (10V, 10mA), 120V 50/60Hz. Push-to-test. Manual Override. Pilot Light.
- The 700-HC Miniature Square Base Relays are 2 or 4-pole plug-in relays for your low-energy switching applications.
- Includes blade style terminals
- Offers 7 or 10 A contact ratings
- Includes standard ON/OFF flag indicator
- Includes electrical schematic on faceplate, clear cover for visual inspection
- Offers incorporated manual override lever (-3 option) with the existing push-to-test button
- Includes optional lighted status indicator, push-to-test, and manual override
- Miniature "Ice Cube" Relays.
