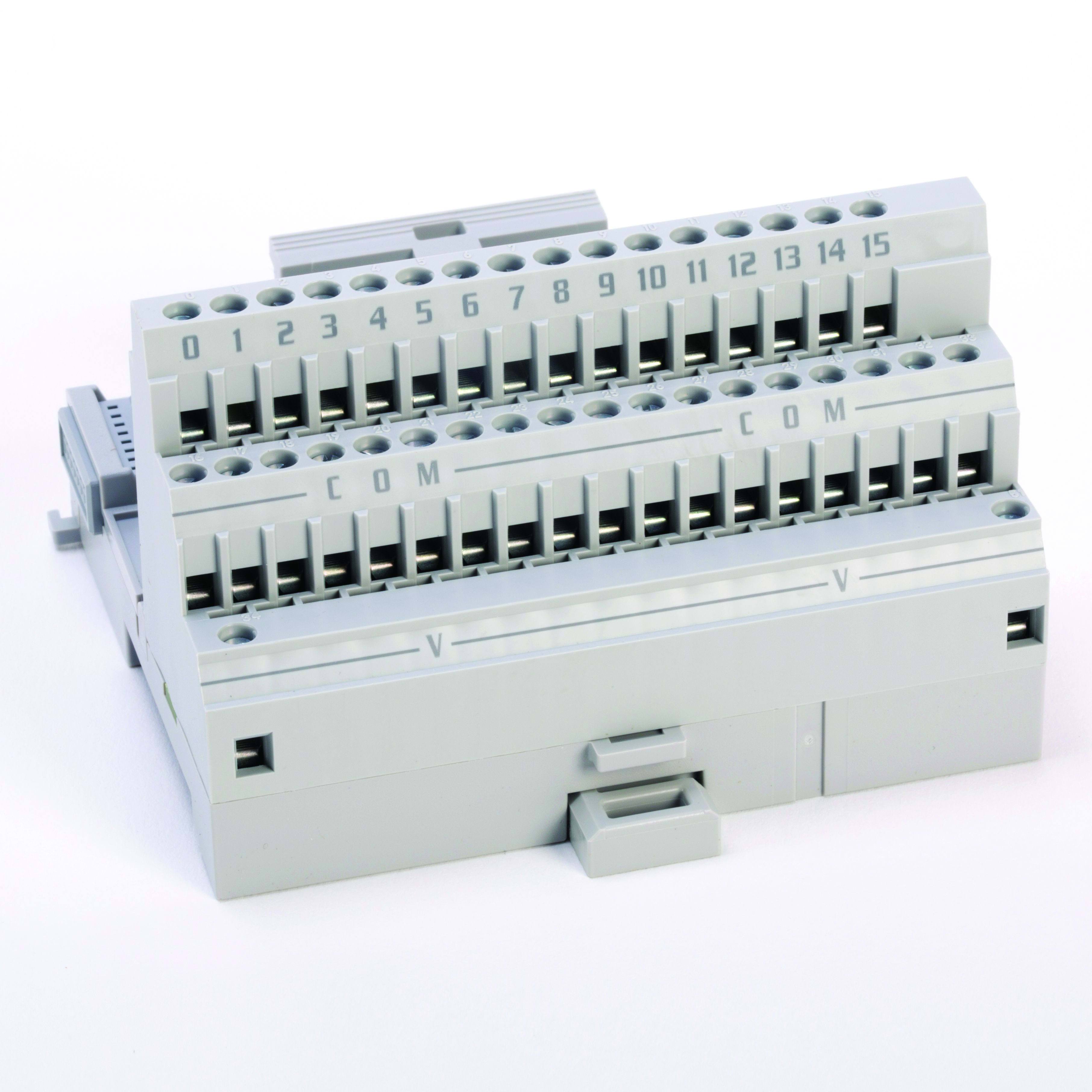

Allen-Bradley - FLEX I/O 3 WIRE CAGE CLAMP TERM BASE - 1794-TB3
/ each
£191.40
Delivery
Essential specifications
Input voltage at AC 50 Hz - 120...120 V
Input voltage at DC - 24...24 V
Number of slots - 0
Digital I/O plug-in modules possible - yes
Analogue I/O plug-in modules possible - yes
Packaging
1 each
GTIN
10662468112359
Supplier Ref
1794-TB3
Manufacturer Ref
1794-TB3
Commercial Reference
1794-TB3
Input voltage at AC 50 Hz:
120...120 V
Input voltage at DC:
24...24 V
Number of slots:
0
Digital I/O plug-in modules possible:
yes
Analogue I/O plug-in modules possible:
yes
Type of input voltage:
AC/DC
Max. input current AC 50 Hz:
10 A
Communication plug-in modules possible:
no
Function and technology plug-in modules possible:
yes
Rail mounting possible:
yes
Wall mounting/direct mounting:
no
Front installation possible:
no
Width:
94 mm
Height:
94 mm
Depth:
69 mm
FLEX I/O. Terminal base. 3 wire. Screw clamp
- Digital and analog modules plus a breadth of specialty modules support a wide variety of applications.
- Removal and Insertion Under Power (RIUP) lets you replace modules and make cable connections while the system is in operation.
- FLEX I/O-XT™ extreme environment modules are rated for -20...70 °C (-4...185 °F) and are compatible with the ControlLogix-XT™ extreme environment system.
- Conformal coated modules are available.
- Each I/O module requires a terminal base for connection points for I/O wiring.
