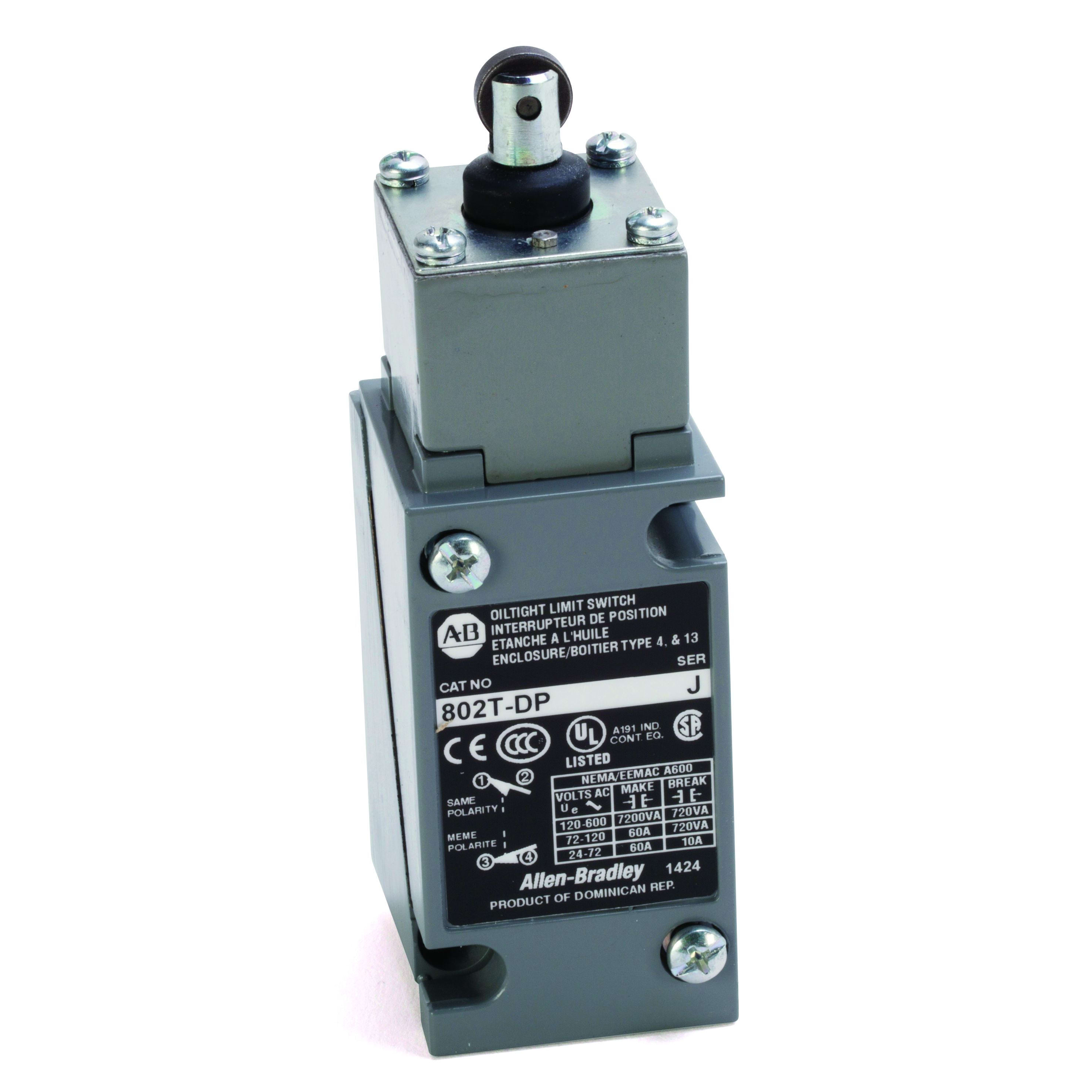

Allen-Bradley - L Switch PLUG IN TOP PUSH ROLL - 802T-DP

Number of contacts as normally closed contact:

1

Number of contacts as normally open contact:

1

Type of control element:

Roller lever

Width sensor:

41.78 mm

Height of sensor:

47.24 mm

Length of sensor:

103.38 mm

Rated operation current Ie at AC-15, 125 V:

6 A

Rated operation current Ie at AC-15, 230 V:

3 A

Rated operation current Ie at DC-13, 125 V:

2.2 A

Rated operation current Ie at DC-13, 230 V:

1.1 A

Material housing:

Metal

Ambient temperature during operating:

-18...110 °C

IP-rating:

IP67
