Allen-Bradley - MICRO D-CODE, QD STYLE ETHERNET MEDIA - 1585D-M4UBDM-4
/ each
£69.16
Delivery
Essential specifications
Category - 5E
Length - 4 m
Type of connector connection 1 - M12
Type of connector connection 2 - M12
Material connector of connector housing connection 2 - Plastic
Packaging
1 each
GTIN
10885630038565
Supplier Ref
1585D-M4UBDM-4
Manufacturer Ref
1585D-M4UBDM-4
Commercial Reference
1585D-M4UBDM-4
Category:
5E
Length:
4 m
Type of connector connection 1:
M12
Type of connector connection 2:
M12
Material connector of connector housing connection 2:
Plastic
Outer sheath colour:
Other
Strain relief boot:
Moulded-on
Strain relief boot colour:
Black
Oil resistant (acc. EN 60811-404):
yes
AWG-size:
26
Pin assignment:
1:1
IP-rating:
IP67

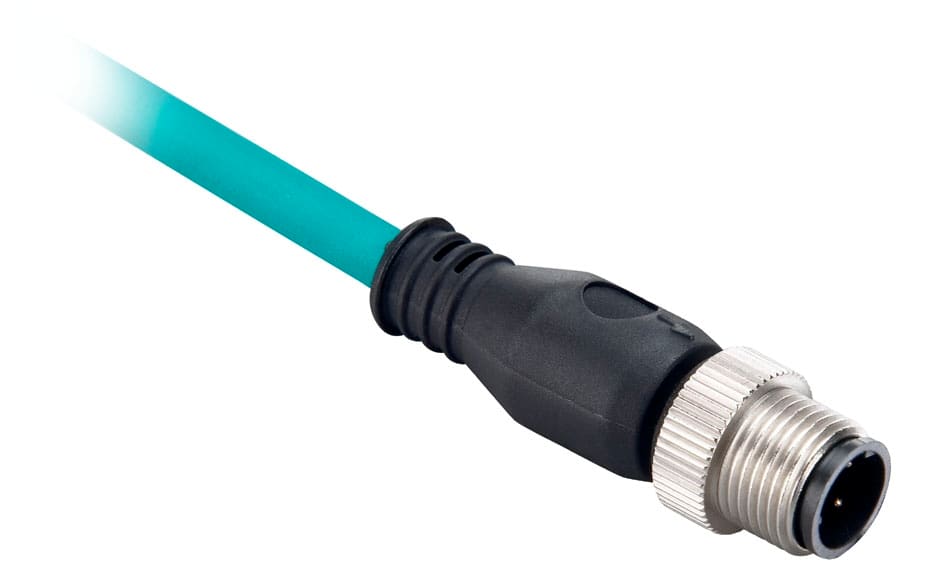

1585 Ethernet Cables, 4 Conductors, M12, Straight Male, Standard, M12, Straight Male, Teal Pur, Shielded, High Flex, Pur, Halogen Free, 10 Million Cycles
- Over molded housing suitable for IP67 applications and harsh industrial environments where extreme vibration, shock, chemicals, and temperature are found.
- Flex-rated cable (must be tied down and not flexed within 6 in. of the connector).
- Custom termination of single-ended cordsets with one of several field attachable connectors.
- Designed to ODVA EtherNet/IP specifications and ISO IEC 24702, IEC 61918.
- Twisted pairs maintain signal balance through cable to provide high noise immunity and return loss.
- Suitable for noise environments M3I3C3E3.
