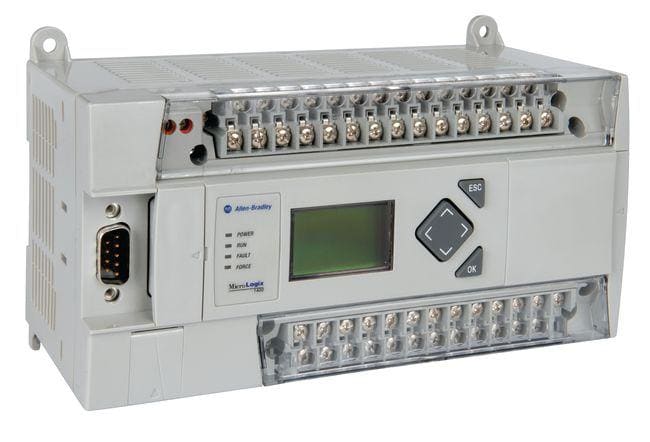

Allen-Bradley - MLX1400 DC 20DCI/P 6RLY&6DC O/P 4AI/2A0 - 1766-L32BXBA
/ each
£1,525.79
Delivery
Essential specifications
Model - Compact
Number of digital outputs - 12
Number of relay outputs - 6
Number of HW-interfaces industrial Ethernet - 1
Number of HW-interfaces RS-232 - 2
Packaging
1 each
GTIN
10612598518149
Supplier Ref
1766-L32BXBA
Manufacturer Ref
1766-L32BXBA
Commercial Reference
1766-L32BXBA
Model:
Compact
Number of digital outputs:
12
Number of relay outputs:
6
Number of HW-interfaces industrial Ethernet:
1
Number of HW-interfaces RS-232:
2
Number of HW-interfaces other:
0
Number of analogue outputs:
2
Number of analogue inputs:
4
Number of digital inputs:
20
Supporting protocol for TCP/IP:
no
Supporting protocol for MODBUS:
yes
Supporting protocol for Data-Highway:
no
Supporting protocol for SERCOS:
no
Supporting protocol for EtherNet/IP:
yes
Display:
yes
Memory size:
20 kByte
Rail mounting possible:
yes
Wall mounting/direct mounting:
yes
Front installation possible:
yes
Rack-assembly possible:
no
SIL according to IEC 61508:
None
Performance level acc. to EN ISO 13849-1:
None
Width:
180 mm
Height:
87 mm
Depth:
90 mm
MicroLogix 1400. Controller. 20K user memory. Input 20 x 24V DC (12 fast). Output 6 x 24V DC (3 fast), 6 x relay. Analogue input x4. Analogue output x2. Communications 2 x RS-232, EtherNet/IP. Supply 24V DC
- Ethernet port provides Web server capability, email capability and protocol support for DNP3 protocol support
- Built-in LCD with backlight lets you view controller and I/O status
- Built-in LCD provides simple interface for messages, bit/integer monitoring and manipulation
- Expands application capabilities through support for as many as seven 1762 MicroLogix Expansion I/O modules with 256 discrete I/O
- As many as six embedded 100 kHz high-speed counters (only on controllers with DC inputs)
- Two serial ports with DF1, DH-485, Modbus RTU, DNP3 and ASCII protocol support
- 10 KB words in user program memory with 10 KB words in user data memory)
- Up to 128 KB for data logging and 64 KB for recipe.
