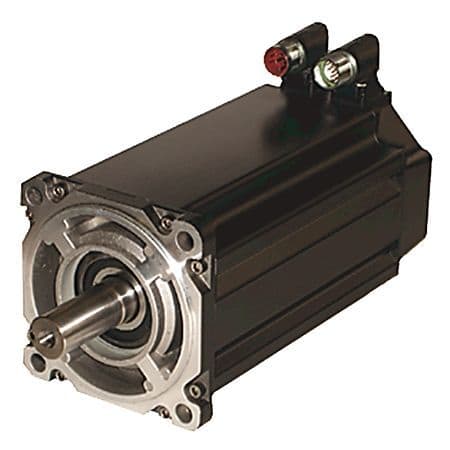

Allen-Bradley - MP-SERIES MPL 480V AC ROTARY SERVO MOTOR - MPL-B680K-SJ72AA

Model:

Rotary current synchronous motor

Rated voltage:

460 V

Number of phases:

3

Rated performance at rated frequency:

7.5 kW

Rated rotational speed at rated frequency:

4000 1/min

Rated frequency:

50...60 Hz

Voltage type:

AC

IP-rating:

IP66

Duty cycle:

S1

Frame size acc. to IEC:

215 mm

Nominal torque:

60 Nm

Operation temperature:

0...40 °C
