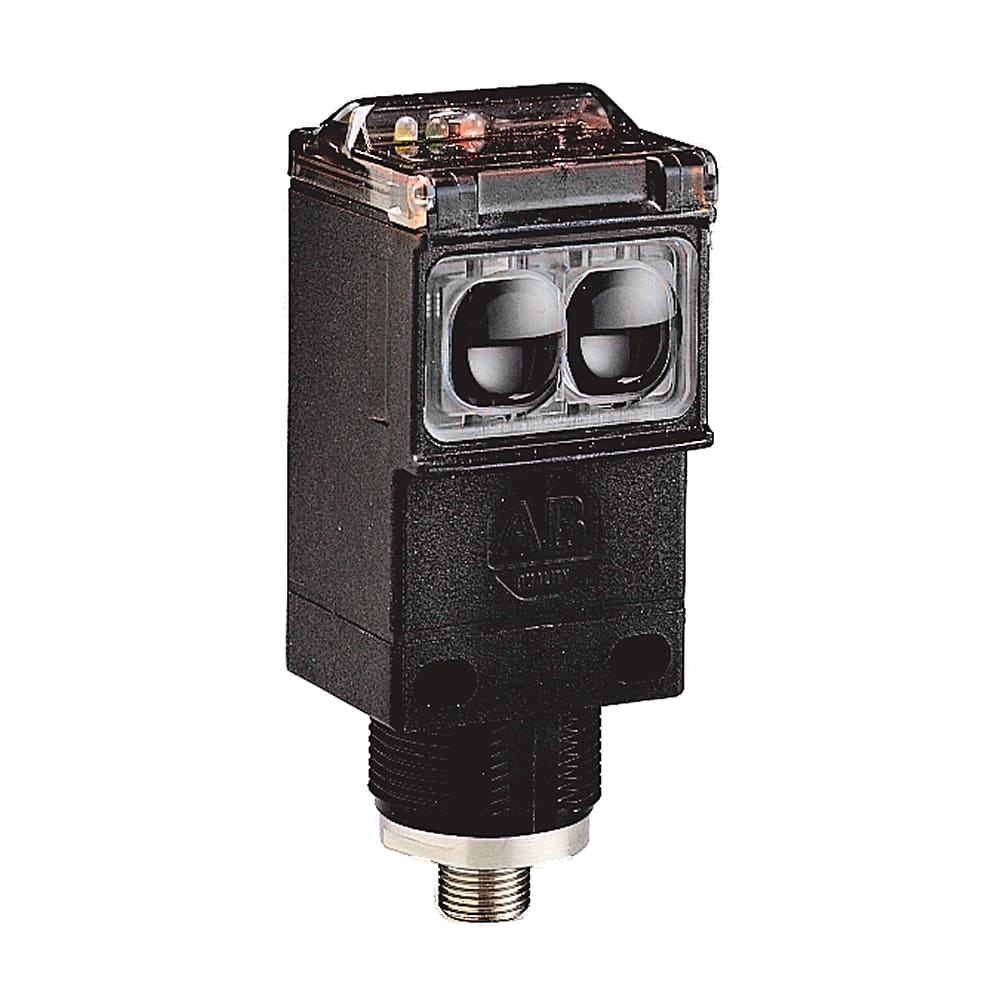

Allen-Bradley - PEC PolRetro5M PNP/NPN LtOp/DkOp MicroQD - 42GRU-9200-QD
/ each
£102.31
Delivery
Essential specifications
Rated switching distance - 4870 mm
Rated control supply voltage Us at DC - 24...24 V
IP-rating - IP67
With time delay function - yes
Max. output current - 250 mA
Packaging
1 each
GTIN
10662073868481
Supplier Ref
42GRU-9200-QD
Manufacturer Ref
42GRU-9200-QD
Commercial Reference
42GRU-9200-QD
Rated switching distance:
4870 mm
Rated control supply voltage Us at DC:
24...24 V
IP-rating:
IP67
With time delay function:
yes
Max. output current:
250 mA
Type of electric plug connection:
Connector M12
Type of switching output:
PNP/NPN
Width sensor:
41.91 mm
Height of sensor:
103.63 mm
Length of sensor:
40 mm
Sensing mode:
Light-/dark switching
Material of optical surface:
Plastic
Material housing:
Plastic
Time of reaction:
15 ms
Transmission range of the safety field:
4.87 m
Voltage type:
DC
Wavelength of the sensor:
660 nm
Type of light:
Infrared light
PHOTOSWITCH Photoelectric Sensor, Standard (On / Off), Polarized Retroflective, 4.87m (16ft), 10-40V DC, NPN/PNP Transistor, 4-pin DC Micro (M12) QD
- Extended sensing range for maximum application flexibility
- Class 1 laser models ideal for the detection of small parts
- DC (PNP and NPN) and AC/DC (relay output, solid-state) models
- Time delay models
- Dual (NPN and PNP) output models
- IP69K, IP67 with 1200 psi, NEMA, and ECOLAB rated enclosures
