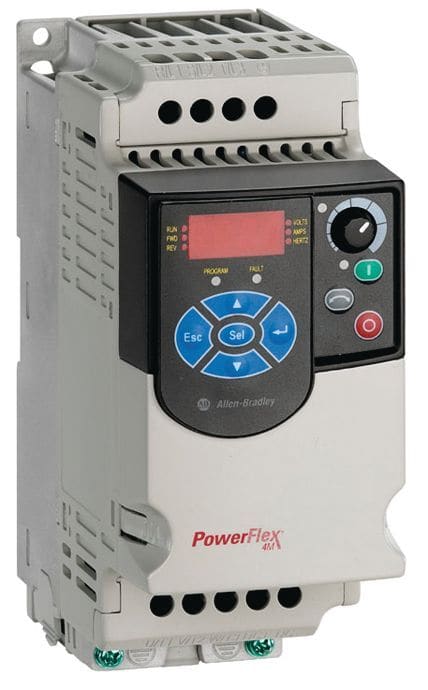

Allen-Bradley - PF4M,400-480V,3~,8.7A,4KW,IP20,EMC - 22F-D8P7N113

Mains voltage:

380...480 V

Max. output frequency:

400 Hz

Nominal output current I2N:

8.7 A

Max. output at quadratic load at rated output voltage:

8.7 kW

IP-rating:

IP20

Mains frequency:

50/60 Hz

Number of phases input:

3

Number of phases output:

3

Max. output at linear load at rated output voltage:

8.7 kW

Number of analogue outputs:

0

Number of analogue inputs:

1

Number of digital outputs:

1

Number of digital inputs:

5

With control unit:

yes

Application in domestic- and commercial area permitted:

yes

Supporting protocol for TCP/IP:

no

Supporting protocol for MODBUS:

yes

Supporting protocol for Data-Highway:

no

Supporting protocol for DeviceNet:

no

Supporting protocol for SERCOS:

no

Supporting protocol for EtherNet/IP:

no

Supporting protocol for DeviceNet Safety:

no

Supporting protocol for other bus systems:

no

Number of HW-interfaces RS-485:

1

Dynamic brake resistor fitted:

no

Dynamic brake chopper included:

no

Height:

174 mm

Width:

100 mm

Depth:

136 mm
