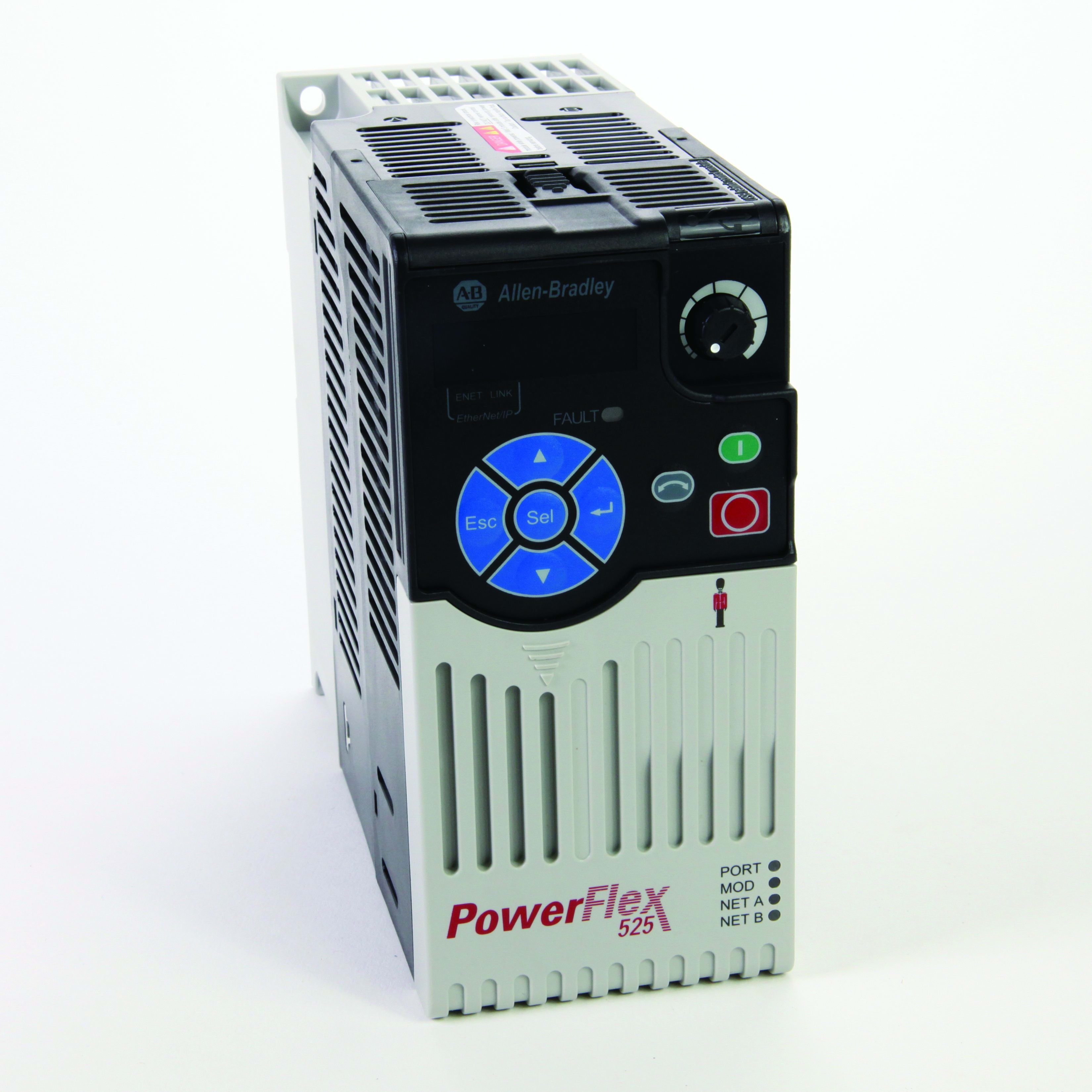

Allen-Bradley - PF525 200-240V, 2.5A 50/60Hz .4kw 1~ EMC - 25B-A2P5N114

Mains voltage:

200...240 V

Max. output frequency:

500 Hz

Nominal output current I2N:

2.5 A

Max. output at quadratic load at rated output voltage:

0.4 kW

IP-rating:

IP20

Mains frequency:

50/60 Hz

Number of phases input:

1

Number of phases output:

3

Max. output at linear load at rated output voltage:

0.4 kW

Number of analogue outputs:

1

Number of analogue inputs:

2

Number of digital outputs:

4

Number of digital inputs:

7

With control unit:

yes

Application in domestic- and commercial area permitted:

yes

Supporting protocol for TCP/IP:

no

Supporting protocol for MODBUS:

yes

Supporting protocol for Data-Highway:

no

Supporting protocol for DeviceNet:

no

Supporting protocol for SERCOS:

no

Supporting protocol for EtherNet/IP:

yes

Supporting protocol for DeviceNet Safety:

no

Supporting protocol for other bus systems:

no

Number of HW-interfaces industrial Ethernet:

1

Number of HW-interfaces RS-485:

1

Number of HW-interfaces USB:

1

Dynamic brake resistor fitted:

no

Dynamic brake chopper included:

yes

Height:

152 mm

Width:

72 mm

Depth:

172 mm
