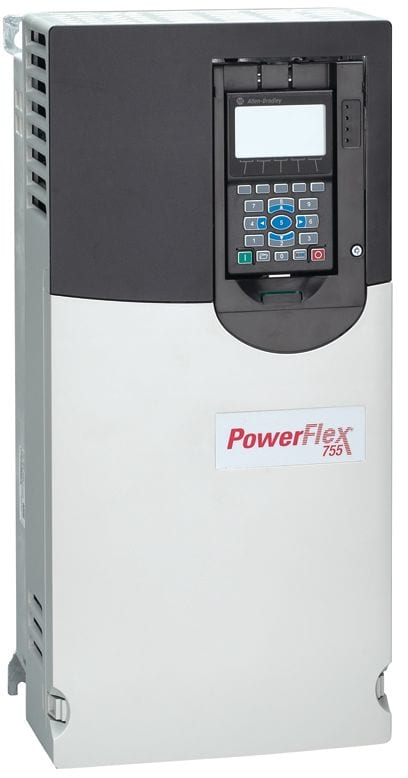

Allen-Bradley - PF755 400V 3PH 456A 250KW IP00 EMC NoDB - 20G1ANC456JN0NNNNN
/ each
£33,745.48
Delivery
Essential specifications
Mains voltage - 380...480 V
Max. output frequency - 590 Hz
Nominal output current I2N - 456 A
Max. output at quadratic load at rated output voltage - 250 kW
IP-rating - IP20
Packaging
1 each
GTIN
00884951070196
Supplier Ref
20G1ANC456JN0NNNNN
Manufacturer Ref
20G1ANC456JN0NNNNN
Commercial Reference
20G1ANC456JN0NNNNN
Mains voltage:
380...480 V
Max. output frequency:
590 Hz
Nominal output current I2N:
456 A
Max. output at quadratic load at rated output voltage:
250 kW
IP-rating:
IP20
Mains frequency:
50/60 Hz
Number of phases input:
3
Number of phases output:
3
Max. output at linear load at rated output voltage:
200 kW
Number of analogue outputs:
0
Number of analogue inputs:
0
Number of digital outputs:
0
Number of digital inputs:
1
With control unit:
no
Application in domestic- and commercial area permitted:
yes
Supporting protocol for TCP/IP:
yes
Supporting protocol for MODBUS:
yes
Supporting protocol for Data-Highway:
no
Supporting protocol for DeviceNet:
no
Supporting protocol for SERCOS:
no
Supporting protocol for EtherNet/IP:
yes
Supporting protocol for DeviceNet Safety:
no
Supporting protocol for other bus systems:
no
Number of HW-interfaces industrial Ethernet:
1
Number of HW-interfaces RS-485:
1
Dynamic brake resistor fitted:
no
Dynamic brake chopper included:
yes
Height:
881.5 mm
Width:
430 mm
Depth:
349.6 mm
PowerFlex 755 AC Drive, with Embedded Ethernet/IP, Air Cooled, AC Input with Precharge, no DC Terminals, Open Type, 456 Amps, 250kW ND, 200kW HD, 400 VAC, 3 PH, Frame 7, Filtered, CM Jumper Installed, None, Blank (No HIM)
- •Power ratings: ◦380…480V: 0.75…1400 kW / 1.0…2000 Hp / 2.1…2330 A
- ◦600V: 1.0…1500 Hp / 1.7…1530 A
- ◦690V: 7.5…1500 kW / 12…1485 A
- •IP00/IP20 NEMA/UL Type Open, flange mount, IP54 NEMA/UL Type 12
- •Pre-engineered Power Option Bay provides cost-effective solution for popular power options
- •Dual-port EtherNet/IP™ Option Module helps you leverage EtherNet/IP networks, minimize the number of managed switches, and reduce cabling needs when using Device Level Ring (DLR) networks
- •Automatic Device Configuration (ADC) allows Logix controllers to detect a replaced drive and download all configuration parameters automatically
- •V/Hz control, vector control with FORCE™ technology, sensorless vector control, and permanent magnet motor control
- •Integrated Motion on EtherNet/IP eases drive configuration and control by using profiles and instruction sets embedded in the Studio 5000™ Logix Designer application
- •Predictive diagnostics for increasing the life of cooling fans and relay outputs
- •Configuration and programming via integral LCD Human Interface Module (HIM), DriveTools SP software, or Connected Components Workbench software
- •Supports easy integration through the embedded EtherNet/IP port and five option slots that support feedback, I/O, safety, and communications modules and an auxiliary 24V DC power supply
- Available Safety Options
- •Safe Torque-Off option is certified at PLe/SIL3 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system. All safety options are available as a kit for user installation
- •Safe Speed Monitor option is certified at PLe/SIL3, Cat 4 and allows you to safely monitor and control the speed of your application which allows operators to perform some process or maintenance work without stopping the machine
