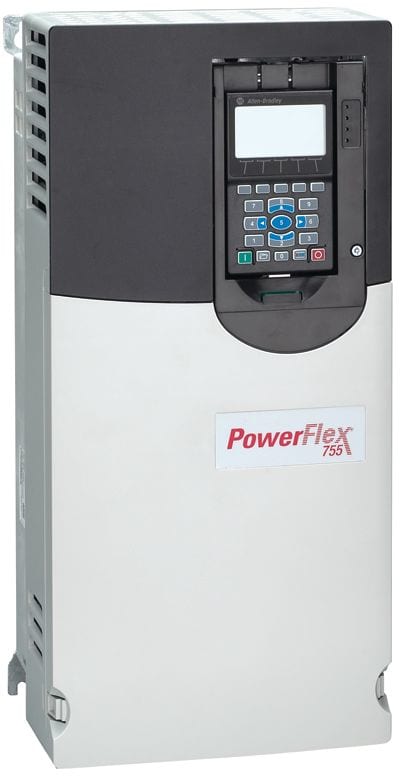

Allen-Bradley - PF755 400V 3PH 5A 2.2KW IP54 EMC - 20G11GC5P0JA0NNNNN
/ each
£3,344.05
Delivery
Essential specifications
Mains voltage - 380...480 V
Nominal output current I2N - 5 A
Max. output at quadratic load at rated output voltage - 2.2 kW
IP-rating - IP54
Mains frequency - 50/60 Hz
Packaging
1 each
GTIN
00884951214842
Supplier Ref
20G11GC5P0JA0NNNNN
Manufacturer Ref
20G11GC5P0JA0NNNNN
Commercial Reference
20G11GC5P0JA0NNNNN
Mains voltage:
380...480 V
Nominal output current I2N:
5 A
Max. output at quadratic load at rated output voltage:
2.2 kW
IP-rating:
IP54
Mains frequency:
50/60 Hz
Number of phases input:
3
Max. output at linear load at rated output voltage:
2.2 kW
Application in domestic- and commercial area permitted:
yes
Height:
543.2 mm
Width:
215.3 mm
Depth:
222.2 mm
PowerFlex 755 AC Drive, with Embedded Ethernet/IP, Air Cooled, AC Input with DC Terminals, Type 12 / IP54, 5 Amps, (Fr1 2.2kW ND, 1.5kW HD/Fr2 2.2kW ND, 2.2kW HD), 400 VAC, 3 PH, Frame 2, Filtered, CM Jumper Installed, DB Transistor, Blank (No HIM)
