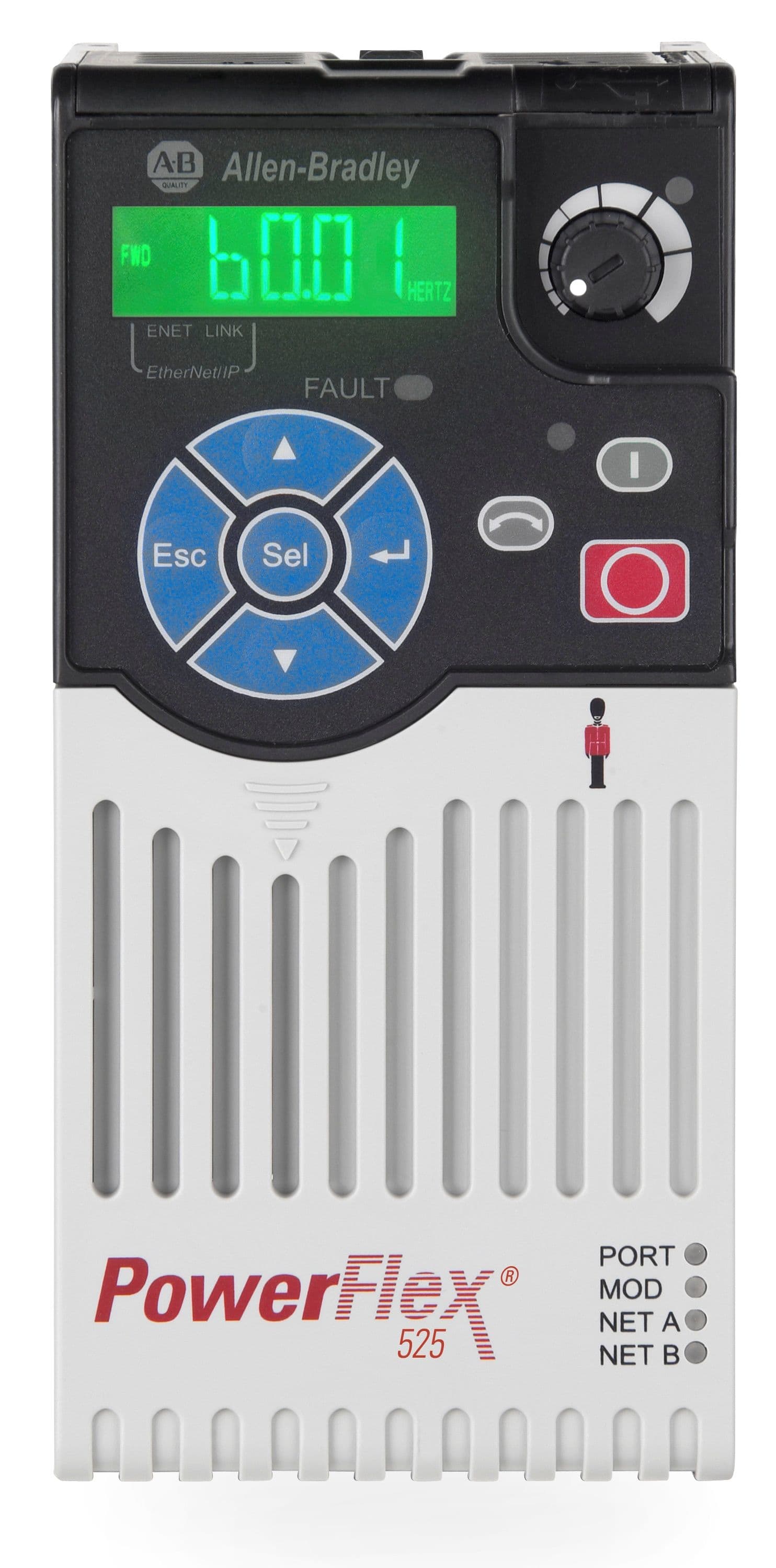

Allen-Bradley - POWERFLEX 525 22KW (30HP) AC DRIVE - 25B-E032N104
/ each
£4,338.89
Delivery
Essential specifications
Mains voltage - 525...600 V
Max. output frequency - 500 Hz
Nominal output current I2N - 32 A
Max. output at quadratic load at rated output voltage - 30 kW
IP-rating - IP20
Packaging
1 each
GTIN
00884951886223
Supplier Ref
25B-E032N104
Manufacturer Ref
25B-E032N104
Commercial Reference
25B-E032N104
Mains voltage:
525...600 V
Max. output frequency:
500 Hz
Nominal output current I2N:
32 A
Max. output at quadratic load at rated output voltage:
30 kW
IP-rating:
IP20
Mains frequency:
50/60 Hz
Number of phases input:
3
Number of phases output:
3
Max. output at linear load at rated output voltage:
25 kW
Number of analogue outputs:
1
Number of analogue inputs:
2
Number of digital outputs:
2
Number of digital inputs:
7
With control unit:
yes
Application in domestic- and commercial area permitted:
no
Supporting protocol for TCP/IP:
no
Supporting protocol for MODBUS:
yes
Supporting protocol for Data-Highway:
no
Supporting protocol for DeviceNet:
yes
Supporting protocol for SERCOS:
no
Supporting protocol for EtherNet/IP:
yes
Supporting protocol for DeviceNet Safety:
no
Supporting protocol for other bus systems:
no
Number of HW-interfaces industrial Ethernet:
1
Number of HW-interfaces RS-485:
1
Number of HW-interfaces USB:
1
Number of HW-interfaces other:
0
Dynamic brake resistor fitted:
no
Dynamic brake chopper included:
yes
Height:
300 mm
Width:
185 mm
Depth:
279 mm
PowerFlex 525 AC Drive, with Embedded EtherNet/IP and Safety, 600 VAC, 3 Phase, 30 HP, 22 kW Normal Duty; 25 HP, 18.5 kW Heavy Duty, Frame E, IP20 NEMA / Open Type, No Filter
- Power ratings of 0.4…22 kW / 0.5…30 Hp in global voltages from 100...600V
- Features a modular design with an innovative, removable control core that allows simultaneous installation and software configuratio
- Offers a wide range of motor control, including volts per hertz, sensorless vector control, and closed loop velocity vector control
- Supports seamless integration into the Logix environment and EtherNet/IP networks with built-in EtherNet/IP™
- Operates in high ambient temperatures up to 70 °C (158 °F) with current derating and a control module fan kit
- Offers compact footprint relative to its power range and Zero Stacking™ mounting with 50 mm airflow gap
- Provides permanent magnet motor control to help improve energy efficiency and reduce related costs
- Features Safe Torque-Off which is certified at PLd/SIL2 Cat 3. Removes rotational power to the motor without removing power from the drive for faster start-up after a demand on the safety system.
