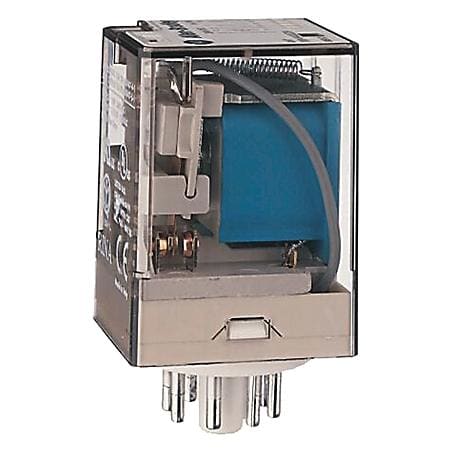

Allen-Bradley - RELAY 3PDT W/PILOT LIGHT 120V - 700-HA33A1-4
/ each
£22.47
Delivery
Essential specifications
Type of electric plug connection - Plug-in connection
Complete with socket - no
Rated control supply voltage Us at AC 50HZ - 120...120 V
Voltage type for actuating - AC
With LED indication - yes
Packaging
1 each
GTIN
10781180312653
Supplier Ref
700-HA33A1-4
Manufacturer Ref
700-HA33A1-4
Commercial Reference
700-HA33A1-4
Type of electric plug connection:
Plug-in connection
Complete with socket:
no
Rated control supply voltage Us at AC 50HZ:
120...120 V
Voltage type for actuating:
AC
With LED indication:
yes
Rated control supply voltage Us at AC 60HZ:
120...120 V
Number of contacts as change-over contact:
3
Type of switch contact:
Single contact
Nominal current:
10 A
IP-rating:
IP40
Width:
36.5 mm
Height:
54.1 mm
Depth:
32.8 mm
700-HA General Purpose Tube Base Relay, 10 Amp Contact, 3PDT, 120V 50/60Hz, Pilot Light
- The 700-HA Tube Base Relays are general purpose relays ideally suited for applications with machine tool, pulp and paper, and transportation OEMs.
- Includes tube base/Octal (8- or 11-pin) terminals
- Offers electrical schematic on faceplate, clear cover for visual inspection, snap-in marker ability
- Includes DPDT or 3PDT
- Includes 10 A, B300 contact rating
- Offers standard ON/OFF flag indicator
- Offers standard, bifurcated or gold-plated bifurcated contacts
- Includes optional lighted status indicator, push-to-test, and manual override.
