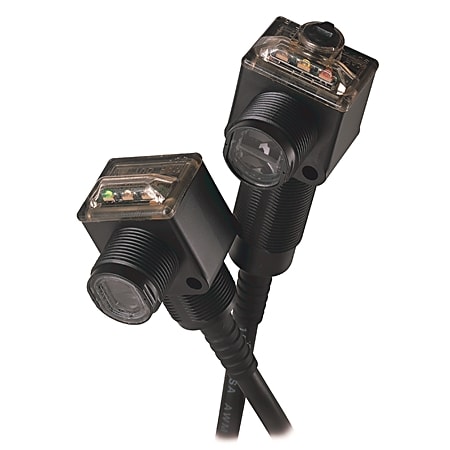

Allen-Bradley - RightSight Photosensor,18 mm Cylindrical - 42EF-E2EZB-F4

Rated switching distance:

2000 mm

Max. output current:

100 mA

Rated control supply voltage Us at DC:

10...30 V

IP-rating:

IP67

Scope of delivery of the one-way system:

Transmitter

With time delay function:

no

With reflector:

no

With communication interface analogue:

no

With communication interface AS-Interface:

no

With communication interface CANOpen:

no

With communication interface DeviceNet:

no

With communication interface Ethernet:

no

With communication interface INTERBUS:

no

With communication interface PROFIBUS:

no

With communication interface RS-232:

no

With communication interface RS-422:

no

With communication interface RS-485:

no

With communication interface SSD:

no

With communication interface SSI:

no

Number of semiconductor outputs with signalling function:

1

Number of contact energized outputs with signalling function:

0

Number of protected semiconductor outputs:

1

Number of protected contact energized outputs:

0

Type of electric plug connection:

Cable

Explosion safety category for gas:

None

Explosion safety category for dust:

None

Construction type housing:

Cuboid

Material of optical surface:

Plastic

Material housing:

Plastic

Max. output current at protected output:

100 mA

Switching frequency:

1000 Hz

Voltage type:

DC

With monitoring function downstream switching devices:

no

Laser protection class:

None

Type of light:

Polarized red light

With restart blockage:

no

Suitable for safety functions:

no
