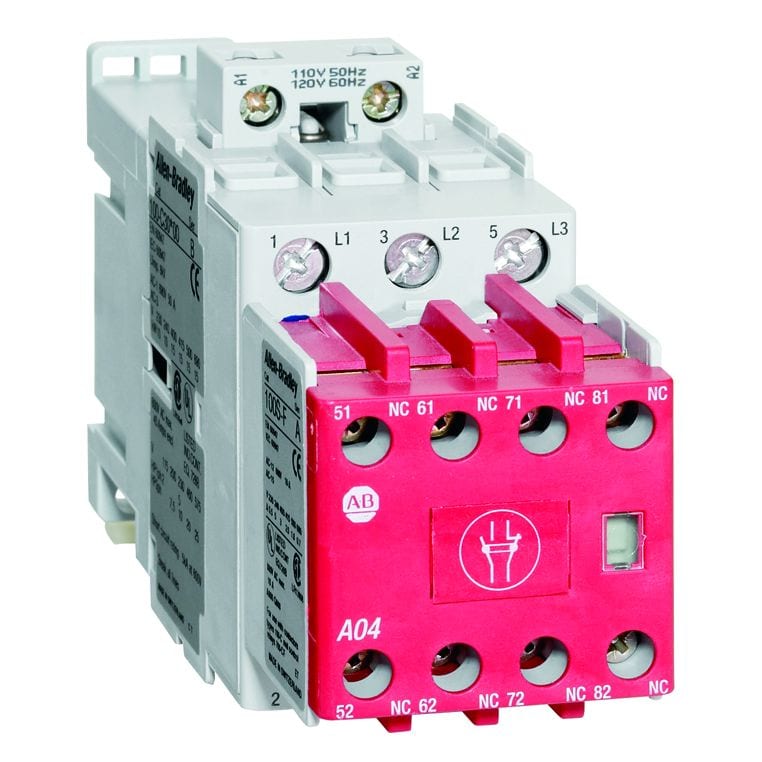

Allen-Bradley - SAFETY CONTACTOR - 100S-C12KF404C
/ each
£76.89
Delivery
Essential specifications
Rated control supply voltage Us at AC 50HZ - 195.5...253 V
Voltage type for actuating - AC
Rated operation power at AC-3, 400 V - 5.5 kW
Number of normally closed contacts as main contact - 0
Number of main contacts as normally open contact - 4
Packaging
1 each
GTIN
10611320394785
Supplier Ref
100S-C12KF404C
Manufacturer Ref
100S-C12KF404C
Commercial Reference
100S-C12KF404C
Rated control supply voltage Us at AC 50HZ:
195.5...253 V
Voltage type for actuating:
AC
Rated operation power at AC-3, 400 V:
5.5 kW
Number of normally closed contacts as main contact:
0
Number of main contacts as normally open contact:
4
Connection type main current circuit:
Screw connection
Rated operation current Ie at AC-1, 400 V:
32 A
Rated operation current Ie at AC-3, 400 V:
12 A
Number of auxiliary contacts as normally open contact:
0
Number of auxiliary contacts as normally closed contact:
4
Suitable for DIN installation panels:
no
100S-C Safety Contactor, 12A, Line Side, 230V 50/60Hz, 4 N.O., 0 N.O. 4 N.C.
- Red contact housing for easy identification
- AC and DC operating coils
- Complete range of accessories
- Reduces drop-out time to 18-23ms, a reduction of up to 50% compared to standard electronic coils
- 100S-C/104S-C Safety Contactors
- Mechanically linked N.C. auxiliary contacts
- Front-mounted auxiliary contacts
- AC and DC operating coils
- SUVA Third-Party certification
