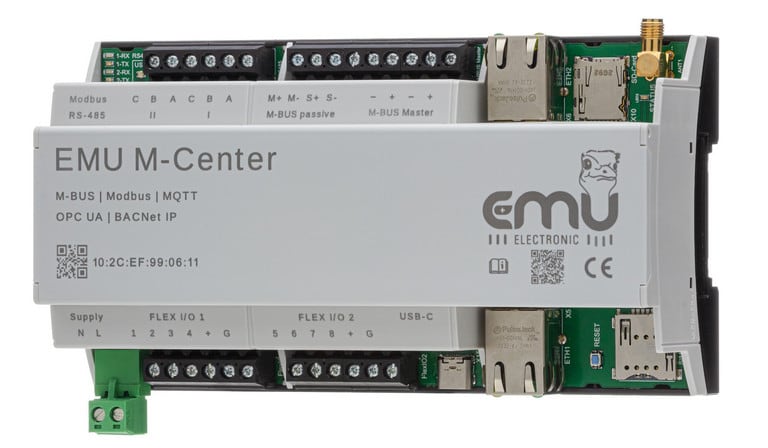

EMU Metering - EMU M-Center Datalogger Gateway DINrail SIM M-Bus RS485 Modbus TCP BACnet OPC UA MQTT Webserver Level Converter ISO 50001 - 210.000.00
/ each
£695.00
Delivery
Essential specifications
Mounting method - DIN rail
Wth communication interface M-Bus - yes
Width - 162 mm
Height - 90 mm
Depth - 61 mm
Packaging
1 each
GTIN
Supplier Ref
210.000.00
Manufacturer Ref
210.000.00
Commercial Reference
210.000.00
Mounting method:
DIN rail
Wth communication interface M-Bus:
yes
Width:
162 mm
Height:
90 mm
Depth:
61 mm
Degree of protection (IP), front side:
IP20
Datacollector for 20 M-Bus devices upgradeable to 60/120/250 input devices. Upgradeable to 32/64 RS485 input devices. Upgradeable to 20/60 Modbus TCP input devices. .csv output, upgradeable to BACnet, OPC UA and MQTT readout. Integrated wireless LTE module, Webserver and High Performance Level Converter. 8 programmable Flex I/O's. Automated data storage in case of server connection failure. ISO 50001 certified. DINrail mounting.
- Integrated M-Bus level converter for up to 250 M-Bus slaves | Ex Factory license for 20 M-Bus meters active
- 2x RS485 interface for Modbus RTU readout (license optional)
- 2x RJ45 interface (1x for LAN connection and 1x service port)
- 8x Flex I/O's
- Integrated SIM card LTE modem
- USB interface
- 230V power supply
