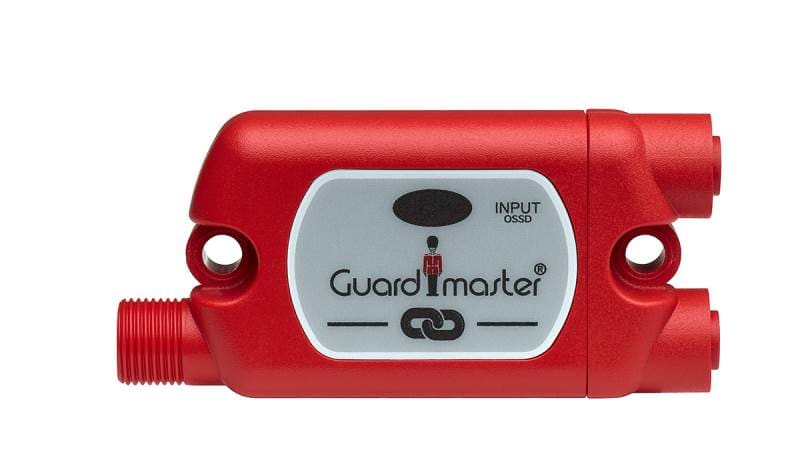

Guardmaster - GuardLink Enabled Tap M12 8 Pin - 440S-SF8D
£97.27
/ each
£97.27
1
Delivery
Number of available items for delivery:14
Essential specifications
Model - Basic device
Voltage type of supply voltage - DC
Supply voltage DC - 24...24 V
Rail mounting possible - no
Type of electric plug connection - Screw connection
Packaging
1 each
GTIN
00889508697581
Supplier Ref
440S-SF8D
Manufacturer Ref
440S-SF8D
Commercial Reference
440S-SF8D
Model:
Basic device
Voltage type of supply voltage:
DC
Supply voltage DC:
24...24 V
Rail mounting possible:
no
Type of electric plug connection:
Screw connection
Performance level acc. to EN ISO 13849-1:
Level e
SIL according to IEC 61508:
3
With approval according to UL:
yes
Width:
38.5 mm
Height:
17 mm
8 Pin OSSD (Output Signal Switching Device) GuardLink Enabled Tap
- Acts as the adaptor for safety input devices to connect to GuardLink™
- Provides device location and status to GuardLink GSR Relay (DG) technology
- Detects between Output Safety Switching Device (OSSD) or Electromechanical Safety Switch (EMSS)
- Two bright indicators for device and link communication status
- Compact 40 mm housing fits on standard aluminum profiles
- TÜV Approved Ple, SIL 3, Cat 4 Rated
- IP65/IP67 environmental rating
