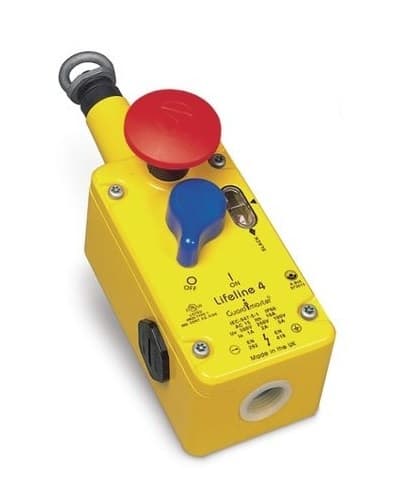

Guardmaster - Lifeline 4 Ropeswitch 2nc 2no M20 - 440E-L13137
£117.27
/ each
£117.27
1
Delivery
Number of available items for delivery:28
Essential specifications
Number of contacts as normally open contact - 2
Number of contacts as normally closed contact - 2
Max. length of pull cord - 75 m
IP-rating - IP67
With tension indication - yes
Packaging
1 each
GTIN
10611320797111
Supplier Ref
440E-L13137
Manufacturer Ref
440E-L13137
Commercial Reference
440E-L13137
Number of contacts as normally open contact:
2
Number of contacts as normally closed contact:
2
Max. length of pull cord:
75 m
IP-rating:
IP67
With tension indication:
yes
Colour:
Yellow
Rope pull switch. Lifeline 4. Safety contact 2NC. Auxiliary 2NO. Rope length 75m max
- The positive mode mechanism helps ensure that the contacts are immediately latched open on actuation and can
- only be reset by the intentional action of turning the blue reset knob. The design also protects against nuisance
- tripping and the effects of thermal expansion.
- A mushroom head emergency stop button is included on the unit to provide E-stop access even at the extreme
- ends of the span.
- The cable status indicator makes the system easy to build and maintain for spans up to 125 m (410 ft).
- Four sets of contacts are provided: 2 N.C. + 2 N.O. or 3 N.O. + 1 N.O. contacts.
- Sealed to IP66 with rugged construction using die-cast alloy and stainless steel to withstand harsh conditions.
- Universal mounting and operation
- Switch lockout on cable pulled and cable slack
- Cable status indicator on switch lid
