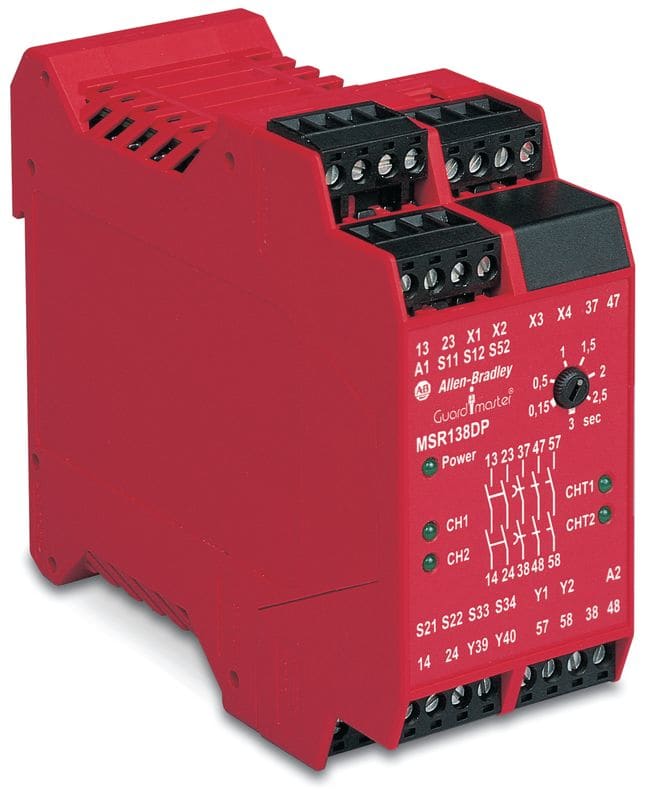

Guardmaster - MSR138DP,24V AC/DC 1.5 to 30 Sec Delay - 440R-M23151

Model:

Basic device

Voltage type of supply voltage:

AC/DC

Supply voltage AC 50 Hz:

24...24 V

Supply voltage DC:

24...24 V

Evaluation inputs:

1-channel or 1- and 2-channel

Rail mounting possible:

yes

With detachable clamps:

yes

Type of electric plug connection:

Plug-in connection

Suitable for monitoring of emergency-stop circuits:

yes

Suitable for monitoring of optoelectronic protection equipment:

yes

Suitable for monitoring of magnetic switches:

yes

With start input:

yes

With feedback circuit:

yes

Release-delay:

1.5...30 s

Number of outputs, safety related, instantaneous, with contact:

2

Number of outputs, safety related, delayed, with contact:

3

Number of outputs, safety related, instantaneous, semiconductors:

0

Number of outputs, safety related, delayed, semiconductors:

0

Number of outputs, signalling function, instantaneous, with contact:

0

Number of outputs, signalling function, delayed, with contact:

0

Number of outputs, signalling function, instantaneous, semiconductors:

0

Number of outputs, signalling function, delayed, semiconductors:

0

Stop category acc. to IEC 60204:

1

Performance level acc. to EN ISO 13849-1:

Level e

With approval according to UL:

yes

Width:

99 mm

Height:

114.5 mm

Depth:

45 mm
