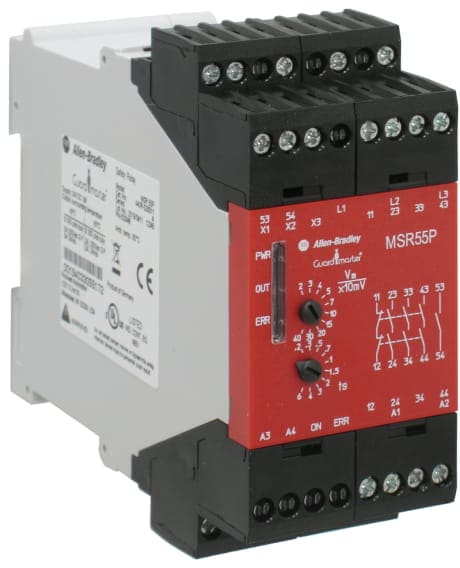

Guardmaster - MSR55P 24V DC 200mV to 4V - 440R-S35014
£402.88
/ each
£402.88
1
Delivery
Number of available items for delivery:5
Essential specifications
Model - Basic device
Voltage type of supply voltage - DC
Supply voltage DC - 24...24 V
Performance level acc. to EN ISO 13849-1 - Level e
SIL according to IEC 61508 - 3
Packaging
1 each
GTIN
00194033055202
Supplier Ref
440R-S35014
Manufacturer Ref
440R-S35014
Commercial Reference
440R-S35014
Model:
Basic device
Voltage type of supply voltage:
DC
Supply voltage DC:
24...24 V
Performance level acc. to EN ISO 13849-1:
Level e
SIL according to IEC 61508:
3
Width:
45 mm
Specialty Safety Relay, Speed Monitoring -, 2 redundant measuring channels Inputs, N/A Auxiliary Outputs, 24V DC,200 mV to 4V. Designed for use with Servos and VSD’s
- Safe standstill detection on three-phase and single-phase motors
- Performance Level is PLe
- Category 4 to EN ISO13849-1: 2008
- SIL Claimed Level (SIL CL) 3 to IEC/EN 62061
- Safety integrity level (SIL) 3 to IEC/EN 61508 and IEC/EN 61511
- No external sensors necessary
- Standstill detection independent of direction
- Broken wire detection
- Three N.O. contacts, one N.C. contact for up to AC 250V
- Two semiconductor monitored outputs
- One monitored output (N.O. contact)
- Adjustable voltage setting
- Adjustable standstill time delay
- LED indicators for standstill, event of line breakage and operation voltage
- Suitable for operation with inverters
- Removable screw terminals
