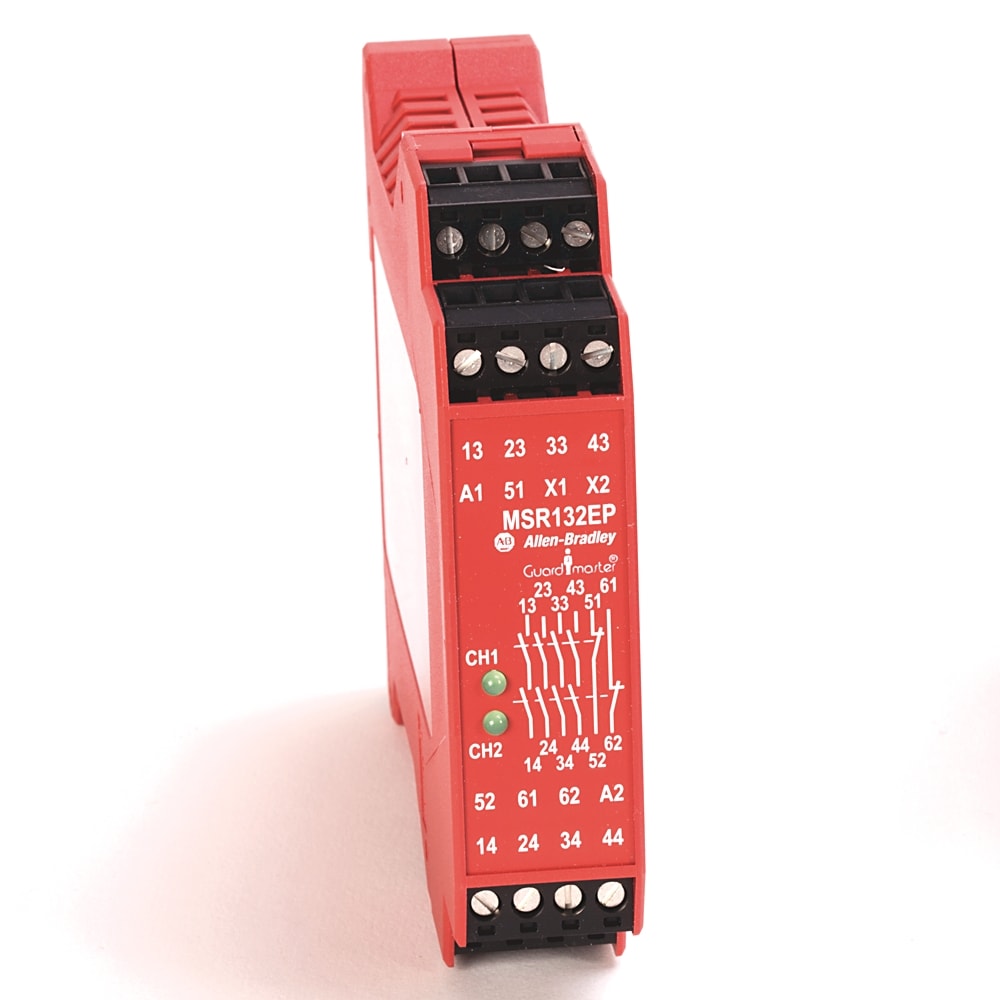

Guardmaster - Safety Relay MSR132EP,24VAC/DC,Removable - 440R-E23097

Model:

Expansion device

Voltage type of supply voltage:

AC/DC

Supply voltage AC 50 Hz:

24...24 V

Supply voltage DC:

24...24 V

Rail mounting possible:

yes

With detachable clamps:

yes

Type of electric plug connection:

Plug-in connection

Suitable for monitoring of position switches:

no

Suitable for monitoring of emergency-stop circuits:

yes

Suitable for monitoring of optoelectronic protection equipment:

no

Suitable for monitoring of tactile sensors:

no

Suitable for monitoring of magnetic switches:

no

Suitable for monitoring of proximity switches:

no

With start input:

yes

With muting function:

no

With feedback circuit:

yes

Number of outputs, safety related, instantaneous, with contact:

4

Number of outputs, safety related, delayed, with contact:

0

Number of outputs, safety related, instantaneous, semiconductors:

0

Number of outputs, safety related, delayed, semiconductors:

0

Number of outputs, signalling function, instantaneous, with contact:

1

Number of outputs, signalling function, delayed, with contact:

0

Number of outputs, signalling function, instantaneous, semiconductors:

0

Number of outputs, signalling function, delayed, semiconductors:

0

Stop category acc. to IEC 60204:

0

Performance level acc. to EN ISO 13849-1:

Level e

With approval according to UL:

yes

Width:

22.5 mm

Height:

114.5 mm

Depth:

99 mm
