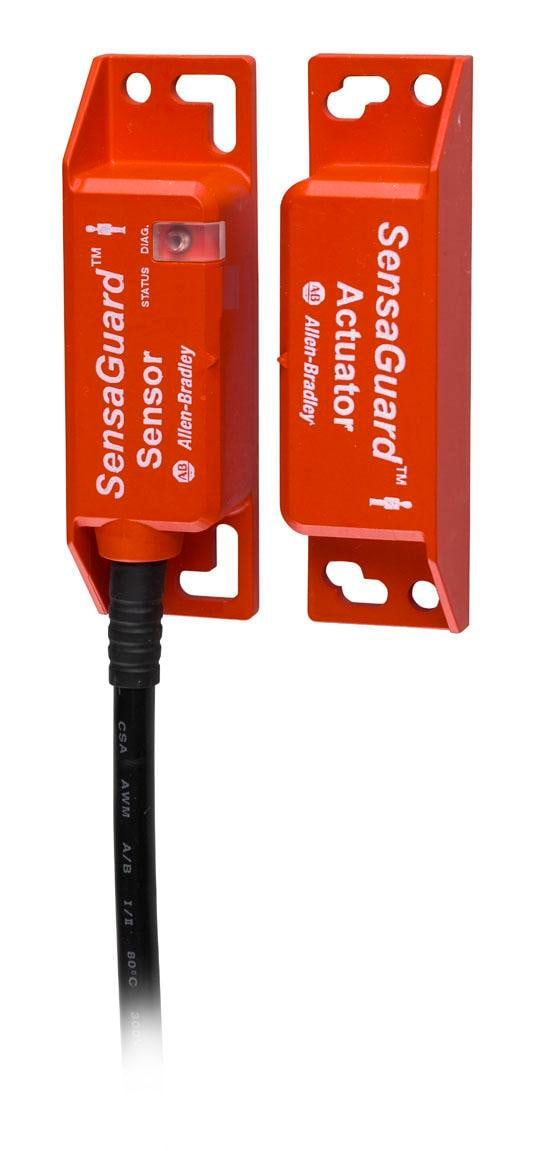

Guardmaster - SensaGuard RFID safety switch 24 V DC 2 PNP safety + 1 PNP aux output - 440N-Z21SS2HN

Number of semiconductor outputs with signalling function:

1

Rated supply voltage at DC:

24...24 V

Switching distance:

20 mm

Number of protected semiconductor outputs:

2

Type of actuation:

Transponder

Type of electric plug connection:

Connector M12

Type of switching output:

PNP

Width sensor:

25 mm

Height of sensor:

89 mm

Length of sensor:

21 mm

Explosion safety category for gas:

None

Explosion safety category for dust:

None

Construction type housing:

Cylinder, screw-thread

Material housing:

Plastic

Coating housing:

Uncoated

Protected switch distance OFF:

23 mm

Protected switch distance ON:

15 mm

Performance level acc. to EN ISO 13849-1:

Level e

Max. output current at protected output:

200 mA

Ambient temperature:

-10...55 °C

Voltage type:

DC

Cross-/short circuit identification possible:

yes

Suitable for safety functions:

yes

With status indication:

yes

IP-rating:

IP67K
