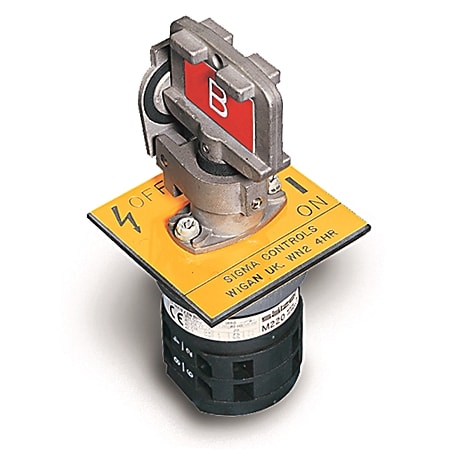

Guardmaster - Switch Panel Mounted,3NO,100A&1NO,20A,AA - 440T-MRPSE14AA

Number of contacts as normally closed contact:

4

With status indication:

no

Suitable for safety functions:

yes

Clamping force:

14 N

Rated control supply voltage Us magnet drive at AC 50 Hz:

600...600 V

Rated control supply voltage Us magnet drive at AC 60 Hz:

1000...1000 V

Width sensor:

64 mm

Height of sensor:

64 mm

Length of sensor:

34 mm

Rated operation current Ie at AC-15, 24 V:

100 A

Rated operation current Ie at AC-15, 125 V:

100 A

Ambient temperature during operating:

-10...40 °C
