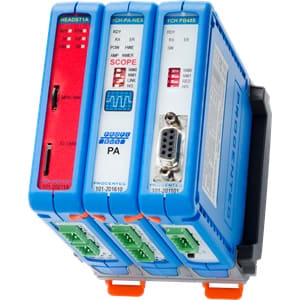

HMS - Diagnostic and couplering for PROF DP/PA - 101-200QBPR
/ each
£2,568.00
Delivery
Essential specifications
Supply voltage DC - 11...26 V
Supporting protocol for TCP/IP - yes
Supporting protocol for PROFIBUS - yes
Voltage type of supply voltage - DC
Supporting protocol for PROFIsafe - yes
Packaging
1 each
GTIN
Supplier Ref
101-200QBPR
Manufacturer Ref
101-200QBPR
Commercial Reference
101-200QBPR
Supply voltage DC:
11...26 V
Supporting protocol for TCP/IP:
yes
Supporting protocol for PROFIBUS:
yes
Voltage type of supply voltage:
DC
Supporting protocol for PROFIsafe:
yes
IP-rating:
IP20
Rail mounting possible:
yes
Width:
63 mm
Height:
107 mm
Depth:
135 mm
ComBricks PA Coupler & Monitoring . Monitor your PROFIBUS & PROFINET network 24/7.
ComBricks allows you to remotely monitor your PROFIBUS installations from anywhere in the world and will alert you if any faults arise or are likely to arise. It is a modular platform able to carry repeaters, PA and fiber optic modules. The transparent PA link/couper enables seamless high speeed integration to PROFIBUS PA. It powers the attached PA devices and fully emulates them as DP devices on the backplane. Adjusted bus parameters are not required and therefore suitable for all DCS and PLC systems, even running on 12 Mbps. The combined internal ProfiTrace and oscilliscope make this product extremely useful for remote maintenance over Ethernet. Jitter, noise, DC current, DC voltage, bar graph and oscilliscope, it is all there and easy to access.
