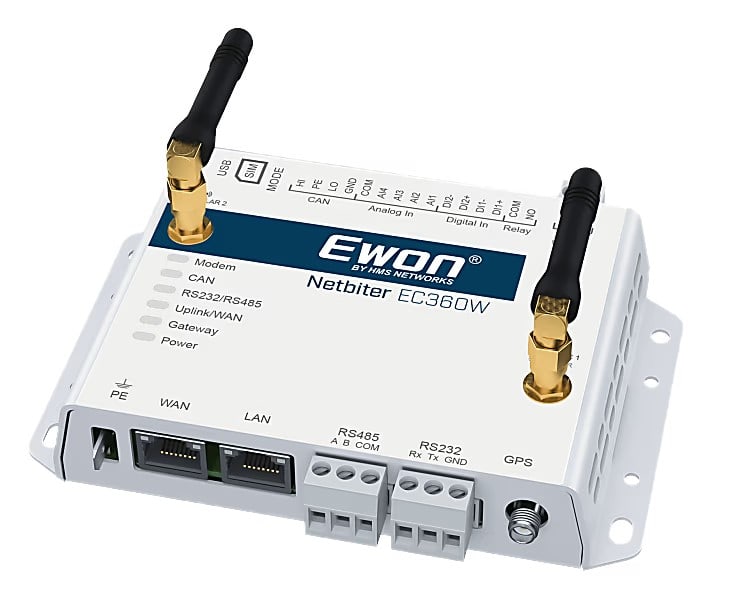

HMS - Netbiter EC360W Gateway with Ethernet + 4G (Worldwide) Connectivity for Remote Monitoring - NB1024

Supply voltage DC:

9...32 V

Supporting protocol for TCP/IP:

yes

Supporting protocol for PROFIBUS:

no

Supporting protocol for MODBUS:

yes

Voltage type of supply voltage:

DC

Number of HW-interfaces CAN:

1

Number of HW-interfaces industrial Ethernet:

2

Number of HW-interfaces RS-232:

1

Number of HW-interfaces RS-485:

1

Number of HW-interfaces USB:

1

Number of HW-interfaces Wireless:

1

Supporting protocol for CAN:

yes

Supporting protocol for INTERBUS:

no

Supporting protocol for ASI:

no

Supporting protocol for KNX:

no

Supporting protocol for EtherNet/IP:

yes

Supporting protocol for other bus systems:

yes

Radio standard LTE:

yes

Radio standard UMTS:

yes

IP-rating:

IP20

With potential separation:

yes

Rail mounting possible:

yes

Wall mounting/direct mounting:

yes

SIL according to IEC 61508:

None

Performance level acc. to EN ISO 13849-1:

None

Explosion safety category for gas:

None

Explosion safety category for dust:

None

Width:

135 mm

Height:

92 mm

Depth:

27 mm
