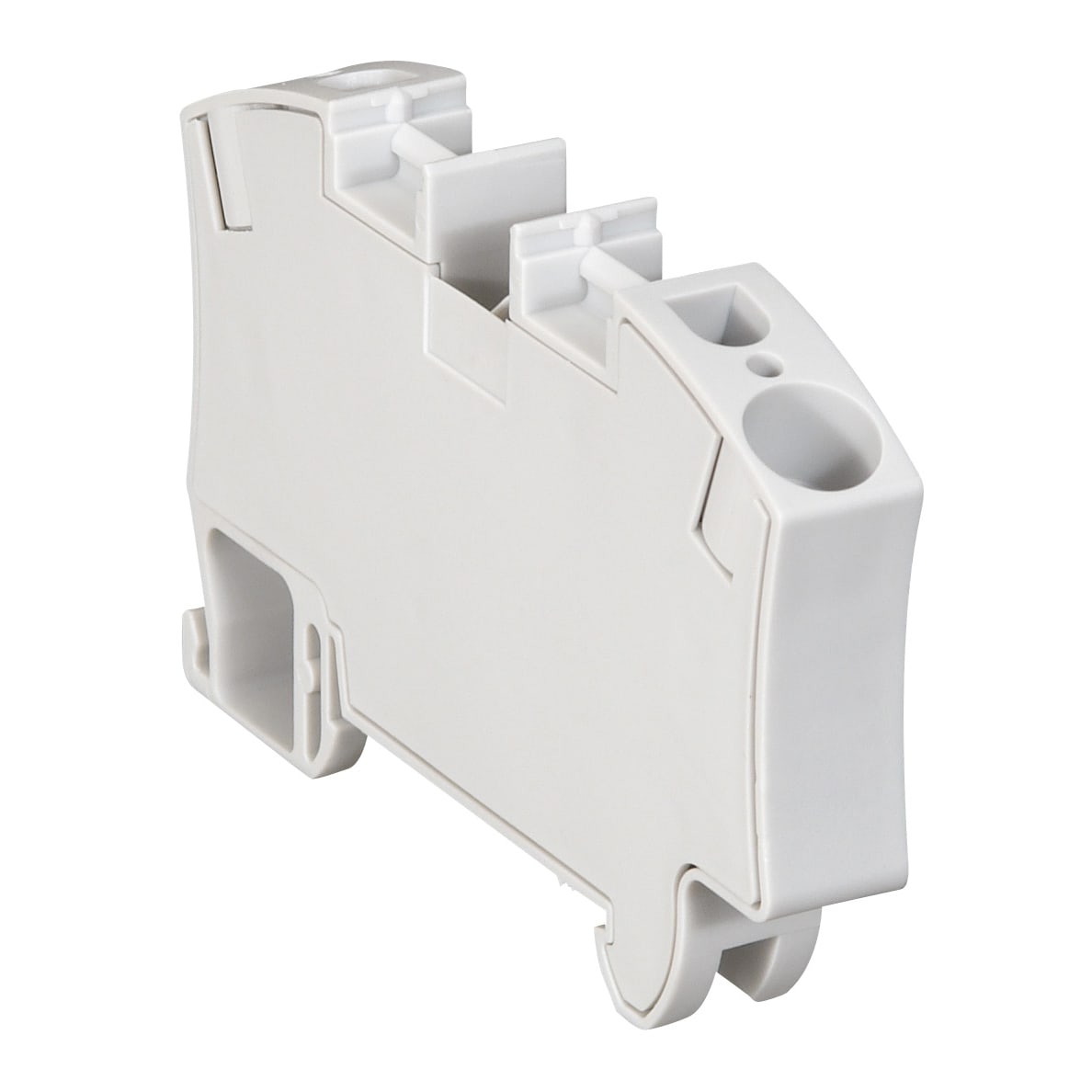

Legrand - 10mm Spring Terminal - 037263

Connectable conductor cross section fine-strand without cable end sleeve:

0.75...10 mm²

Rated current In:

57 A

Type of electrical connection 1:

Spring clamp connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

0.75...10 mm²

Connectable conductor cross section solid-core:

0.75...10 mm²

Connectable conductor cross section multi-wired:

0.75...10 mm²

Rated voltage:

800 V

Type of electrical connection 2:

Spring clamp connection

Number of levels:

1

Material insulation body:

Thermoplastic

Operation temperature:

-5...40 °C

Width:

10 mm

Depth:

74.5 mm

Explosion-tested version 'Ex e':

yes

End plate required:

no

Colour:

Grey

Internally connected levels:

no
