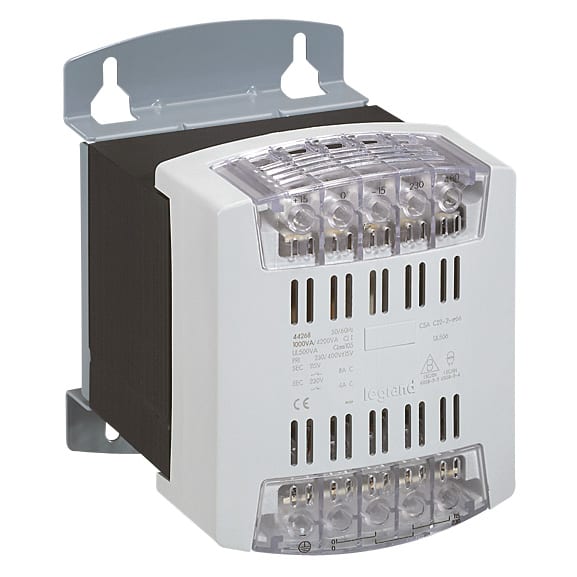

Legrand - Pri 230-400V S115-230V 1000VA - 044268

Built as safety transformer:

no

Primary voltage 1:

215...215 V

Secondary voltage 1:

115...115 V

Rated apparent power:

1000 VA

IP-rating:

Other

Built as isolating transformer:

yes

Built as autotransformer:

no

Primary voltage 2:

230...230 V

Primary voltage 3:

245...245 V

Primary voltage 4:

385...385 V

Primary voltage 5:

400...400 V

Primary voltage 6:

415...415 V

Secondary voltage 2:

230...230 V

Type of insulation material acc. IEC 85:

B

Short-circuit-proof:

no

Relative short circuit voltage:

2.21 %

Width:

150 mm

Height:

199 mm

Depth:

206 mm

Ring core:

no

Suitable for mounting on PCB:

no
