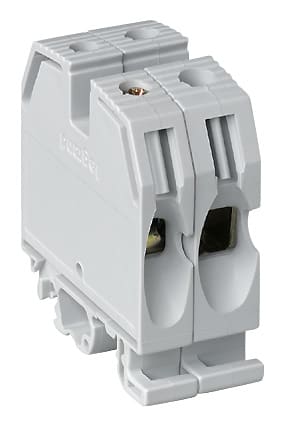

Legrand - Viking Term Block 35mm - 037165

Connectable conductor cross section fine-strand without cable end sleeve:

2.5...50 mm²

Rated current In:

125 A

Type of electrical connection 1:

Screw connection

Number of clamp positions per level:

2

Mounting method:

DIN rail (top hat rail) 35 mm

Connectable conductor cross section fine-strand with cable end sleeve:

4...35 mm²

Connectable conductor cross section solid-core:

2.5...50 mm²

Connectable conductor cross section multi-wired:

4...35 mm²

Rated voltage:

800 V

Type of electrical connection 2:

Screw connection

Number of levels:

1

Material insulation body:

Thermoplastic

Operation temperature:

-5...40 °C

Width:

15 mm

Depth:

57 mm

Explosion-tested version 'Ex e':

yes

End plate required:

yes

Colour:

Grey

Internally connected levels:

no
