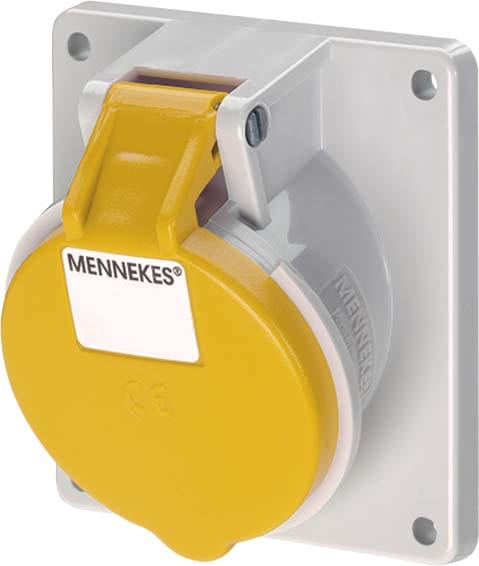

Mennekes - ang.Panel Socket IP44 16A 3p 110V 4h Twi - 1631

IEC-amperage:

16 A

Amperage acc. UL/CSA (for UL-version):

20 A

Voltage acc. EN 60309-2:

110 V (50+60 Hz) yellow

Rated frequency:

50...60 Hz

Number of poles:

3

Clock hour position:

4 h

Identification colour:

Yellow

IP-rating:

IP44

Connection system:

Screw less terminal

Plug-in direction:

Angled

Material:

Plastic

Military model:

no

Flange size vertical:

73.5 mm

Drill hole distance vertical:

60 mm

Flange size horizontal:

64 mm

Drill hole distance horizontal:

52 mm
