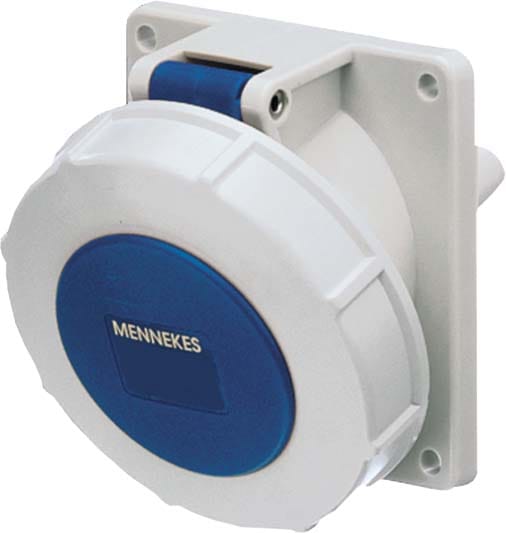

Mennekes - ang.Panel Socket IP67 32A 3p 230V 6h - 1502

IEC-amperage:

32 A

Amperage acc. UL/CSA (for UL-version):

30 A

Voltage acc. EN 60309-2:

230 V (50+60 Hz) blue

Rated frequency:

50...60 Hz

Number of poles:

3

Clock hour position:

6 h

Identification colour:

Blue

IP-rating:

IP67

Connection system:

Screwed terminal

Plug-in direction:

Angled

Material:

Plastic

Military model:

no

Flange size vertical:

73.5 mm

Drill hole distance vertical:

60 mm

Flange size horizontal:

64 mm

Drill hole distance horizontal:

52 mm
