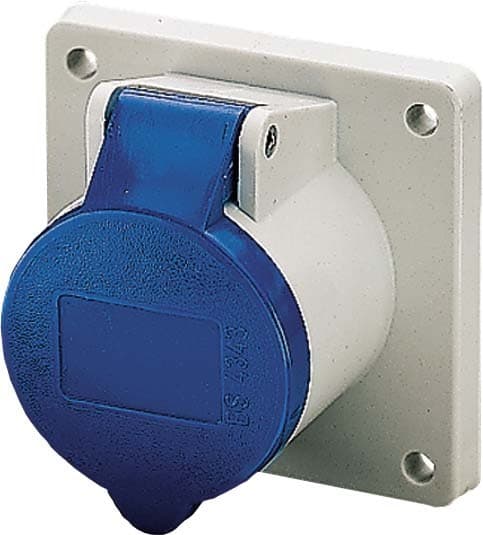

Mennekes - MENNEKES 16A 3P 230V STRAIGHT RECEPTACLE - 1366

IEC-amperage:

16 A

Amperage acc. UL/CSA (for UL-version):

20 A

Voltage acc. EN 60309-2:

230 V (50+60 Hz) blue

Rated frequency:

50...60 Hz

Number of poles:

3

Clock hour position:

6 h

Identification colour:

Blue

IP-rating:

IP44

Connection system:

Screwed terminal

Plug-in direction:

Straight

Material:

Plastic

Military model:

no

Flange size vertical:

75 mm

Drill hole distance vertical:

60 mm

Flange size horizontal:

75 mm

Drill hole distance horizontal:

60 mm
