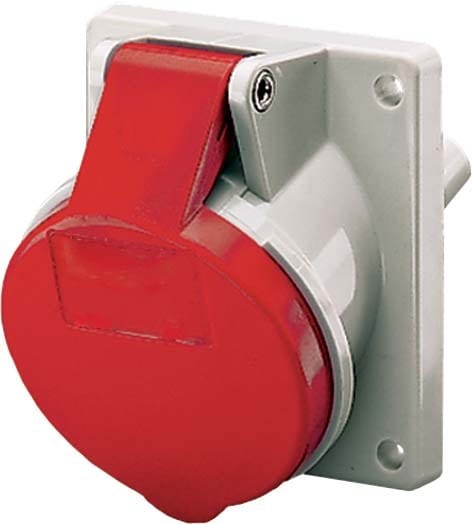

Mennekes - Mennk 1467 PANEL MOUNT SKT 16A 380V - 1467

IEC-amperage:

16 A

Amperage acc. UL/CSA (for UL-version):

20 A

Voltage acc. EN 60309-2:

400 V (50+60 Hz) red

Rated frequency:

50...60 Hz

Number of poles:

4

Clock hour position:

6 h

Identification colour:

Red

IP-rating:

IP44

Connection system:

Screwed terminal

Plug-in direction:

Angled

Material:

Plastic

Military model:

no

Flange size vertical:

73.5 mm

Drill hole distance vertical:

60 mm

Flange size horizontal:

64 mm

Drill hole distance horizontal:

52 mm
